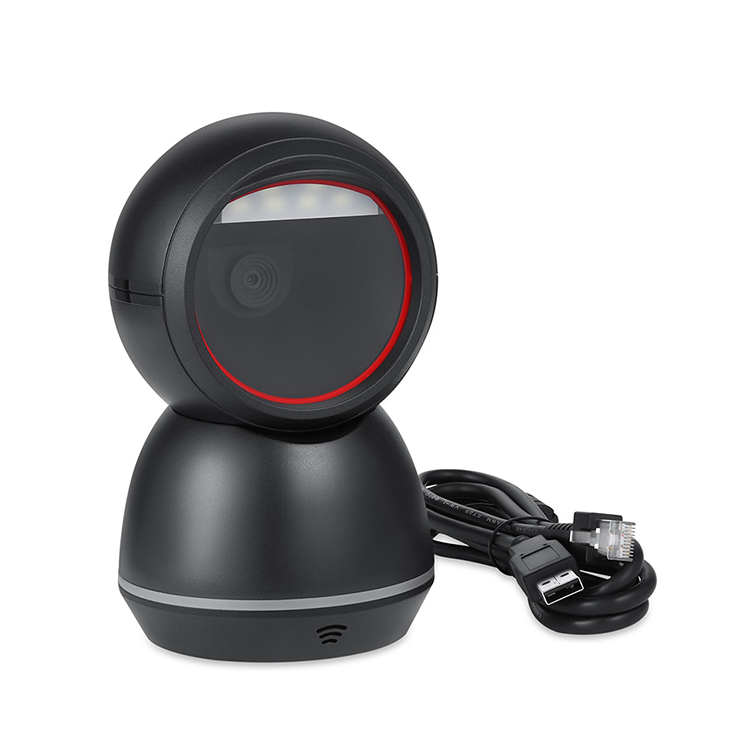

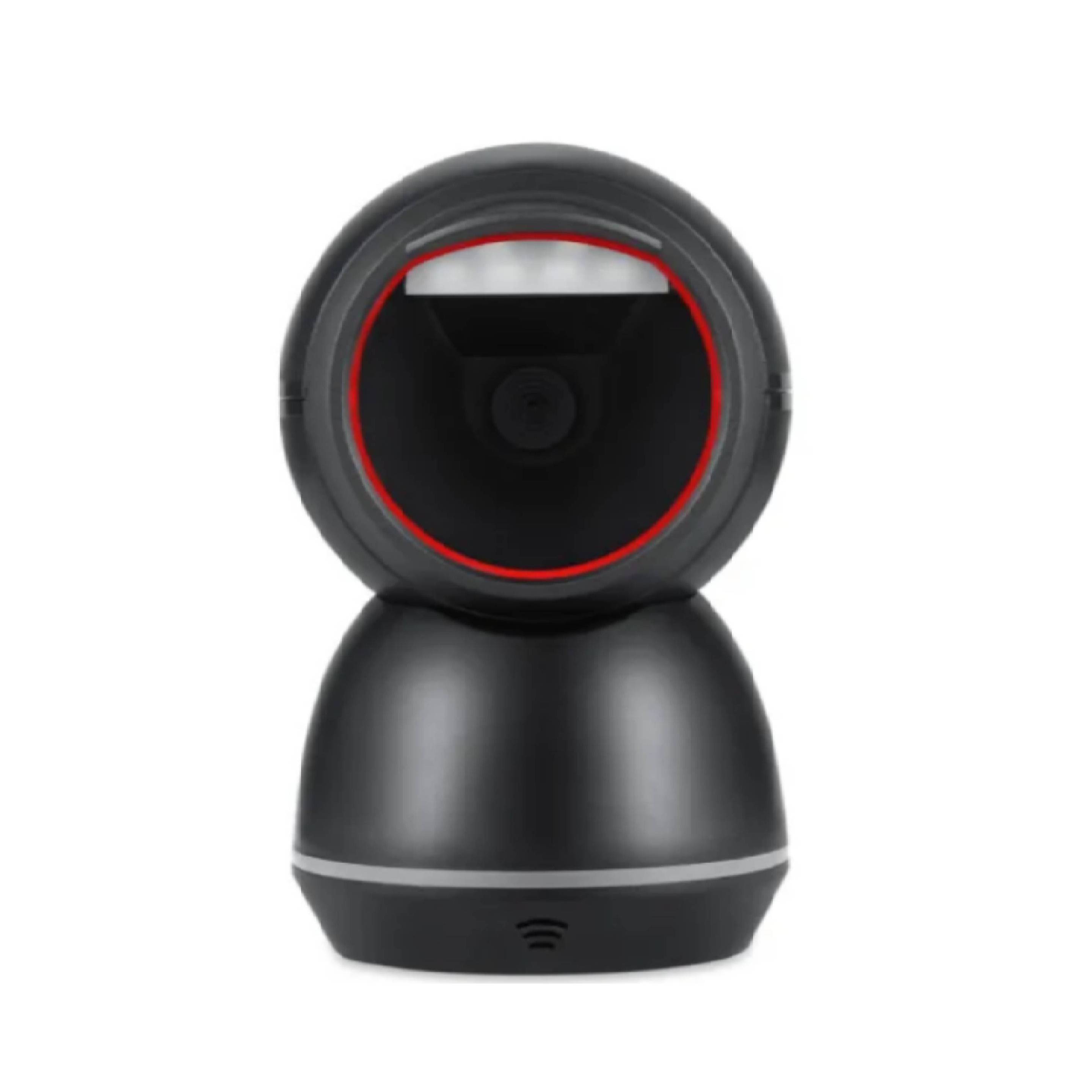

JY-700 High Speed Omni Directional QR Code Reader 2D USB Desktop Barcode Scanner
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* Rotatable structure design to meet more application scenarios.
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* Rotatable structure design to meet more application scenarios.
Model Number | JY-700 |

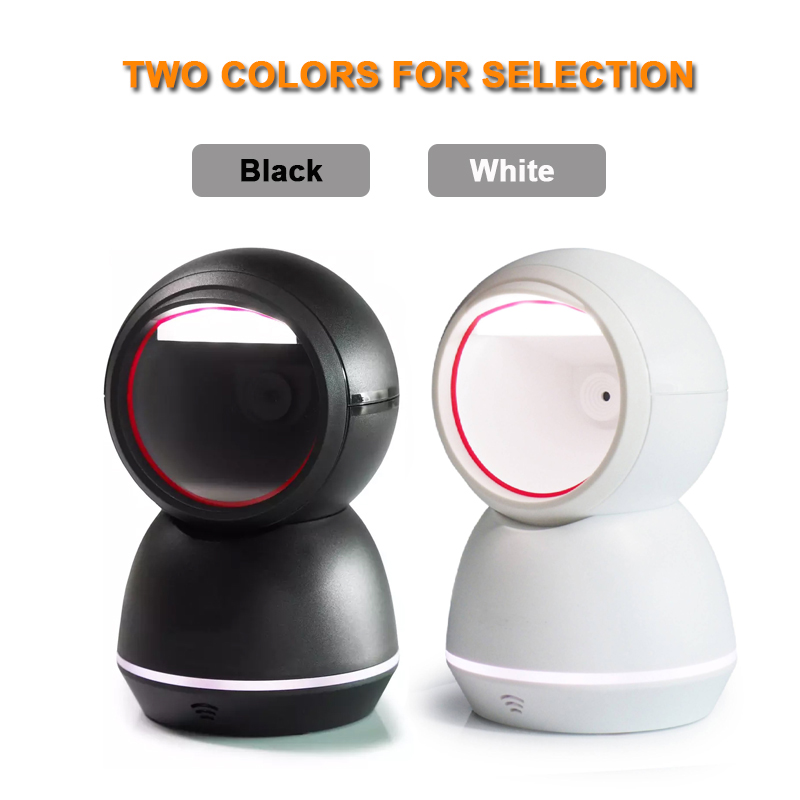

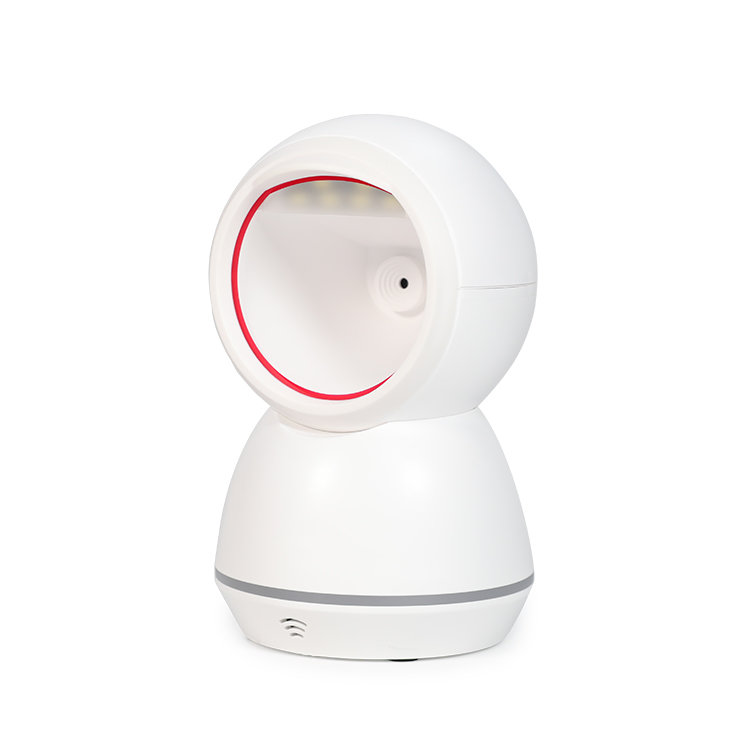

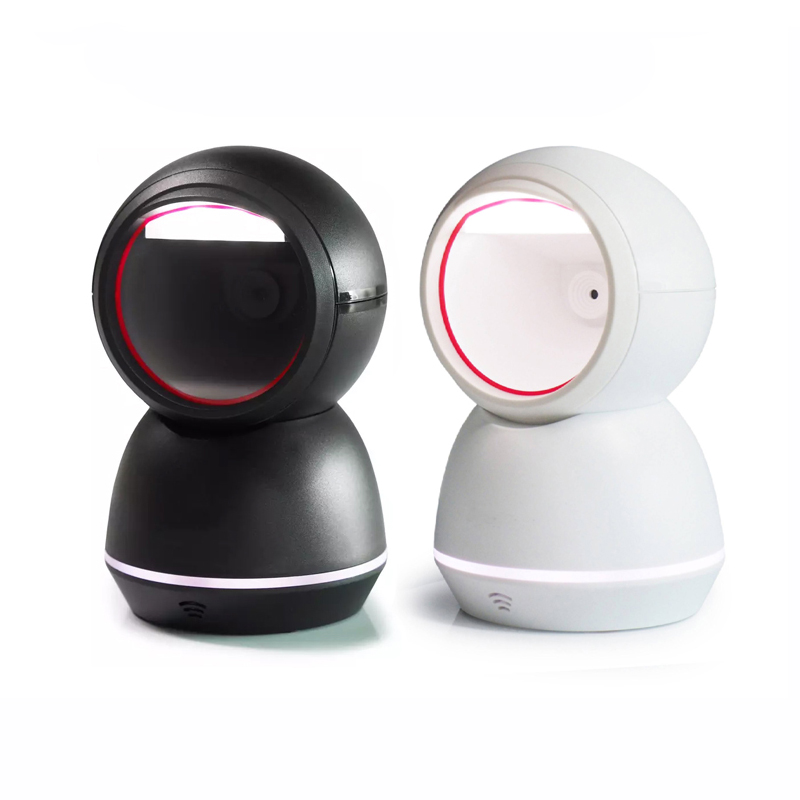

Color | Black or white |
Scan Mode | CMOS 640*480 |
Scan Mode | Continuous scanning/Automatic induction scanning |
Motion Tolerance | 1.6m/sec |
Scan Precision | ≥4mil |
Print Contrast | ≥15% |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Industial 2 of 5, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar, etc 2D: PDF417, Micro PDF417, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, etc |
Scan Depth | Code 128 (5mil): 0~70mm, EAN 13 (13mil): 0~240mm, PDF417 (15mil): 0~270mm, DM (20mil): 0~80mm |
Read Angle | Roll: 360°, Pitch:±60°, Yaw:±60° |
Voltage | DC 5V±5% |
Current | Working current (Standard): < 300 mA, Standby current (Standard): < 210 mA |
Interface | USB |
USB Cable Length | 1.8m |
System Compatibility | All Windows, Linux, MacOS, Android (plug and play) |

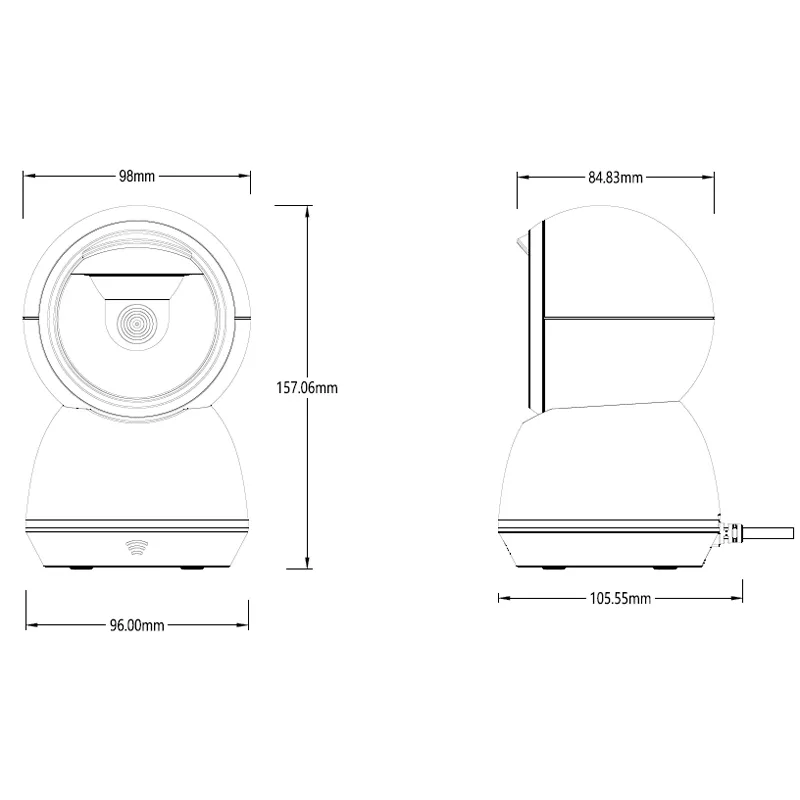

Product Size | 96mm x 106mm x 157mm |
Net Weight | 278g |
