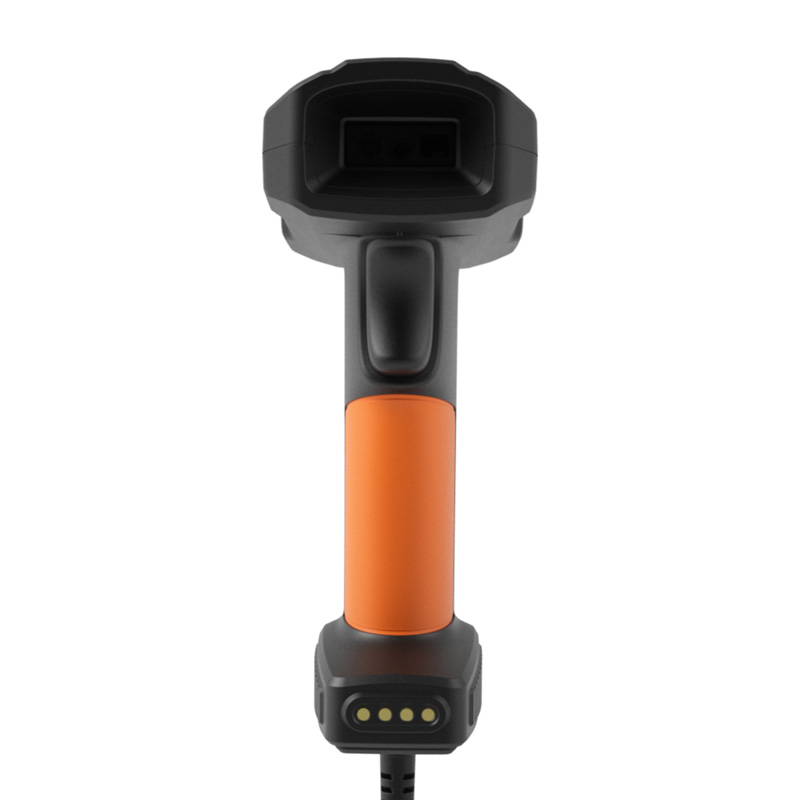

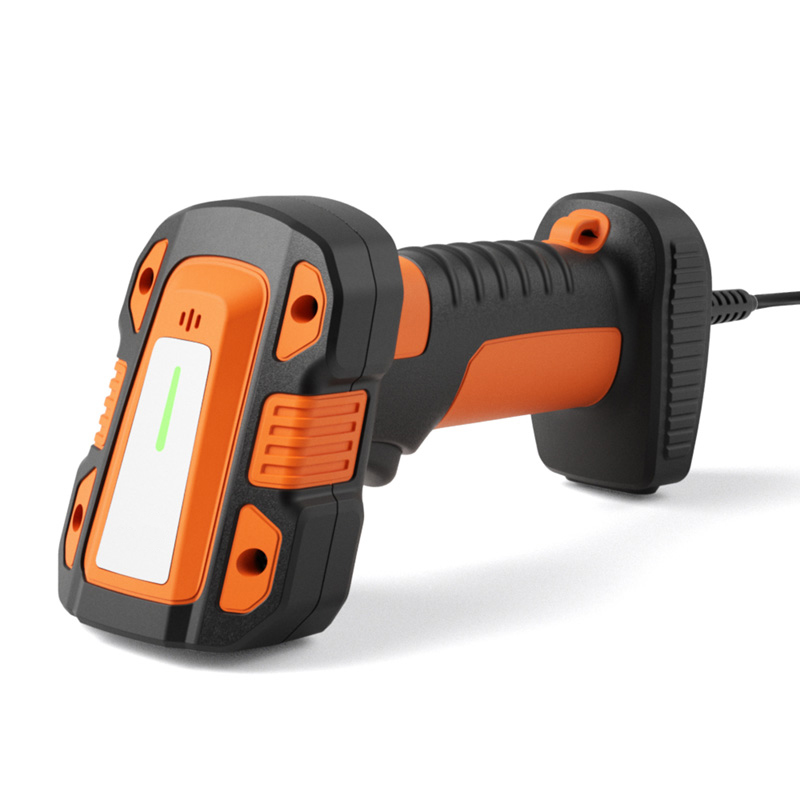

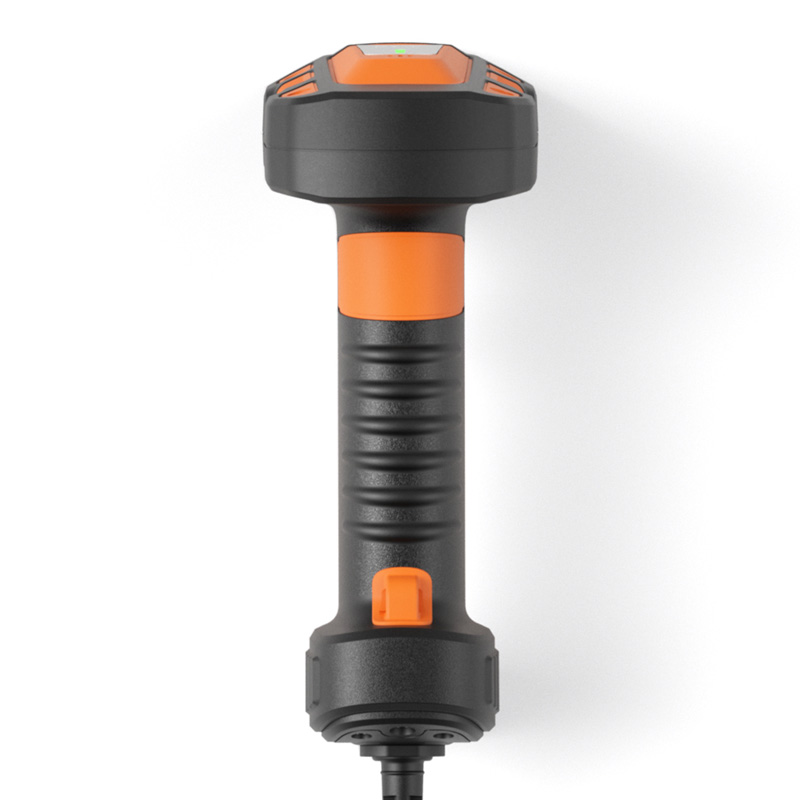

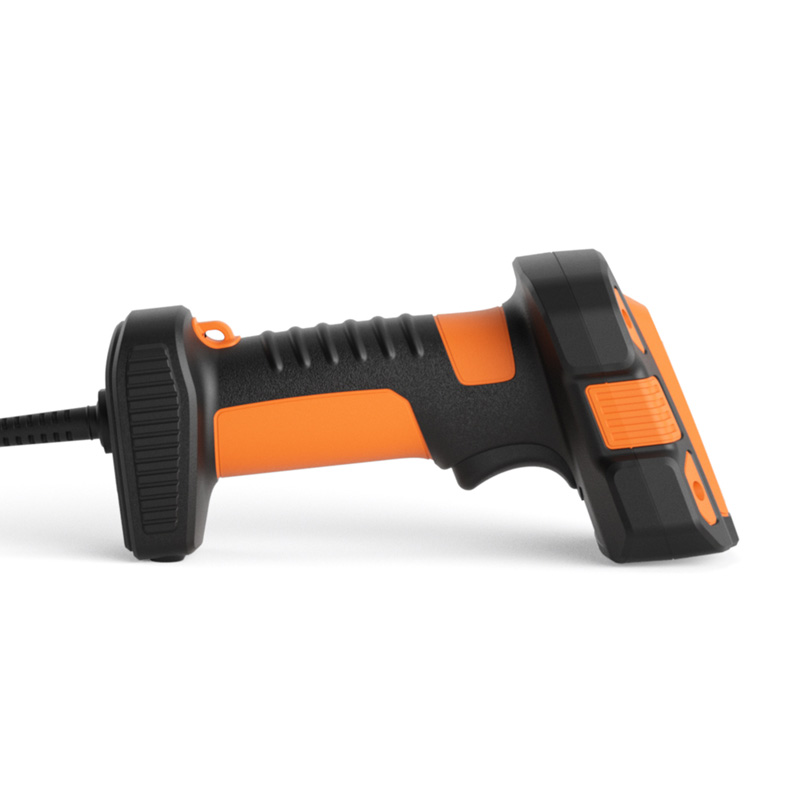

Y1(100) Industrial IP65 Waterproof Handheld Bar code Reader 1D 2D QR Code USB Barcode Scanner

Y1(100) Industrial IP65 Waterproof Handheld Bar code Reader 1D 2D QR Code USB Barcode Scanner

Feature

* High resolution 1280*1024 scanner module, can scan very small barcodes and most different barcodes.

* High speed decoding, sensitive response.


* It can directly read bar codes on phone and computer screens.

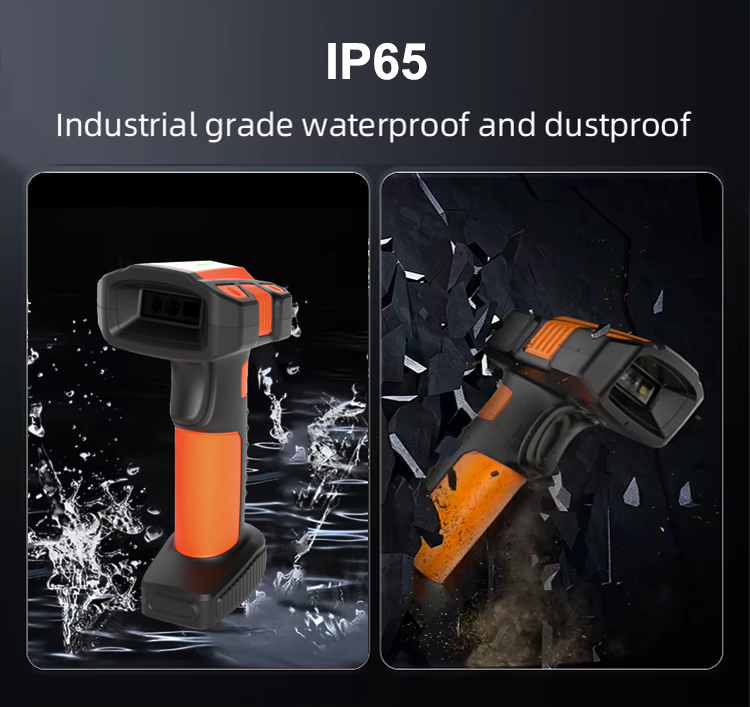

* Excellent durability: IP65, dustproof and waterproof

0.00
0.00

Product Description

Feature

* High resolution 1280*1024 scanner module, can scan very small barcodes and most different barcodes.

* High speed decoding, sensitive response.


* It can directly read bar codes on phone and computer screens.

* Excellent durability: IP65, dustproof and waterproof

Specification
Model Number
Y1
Scan Sensor
CMOS 1280*1024 (1MP)
Environmental Sealing
IP65, waterproof
Transmission Mode
Wired via USB cable
Scan Mode
Trigger scanning/Continuous scanning/Automatic induction scanning
Scan Speed
500 scans/sec ±2%
Scan Precision
≥3mil
Print Contrast
≥15%
Scan Medium
1D/2D barcodes

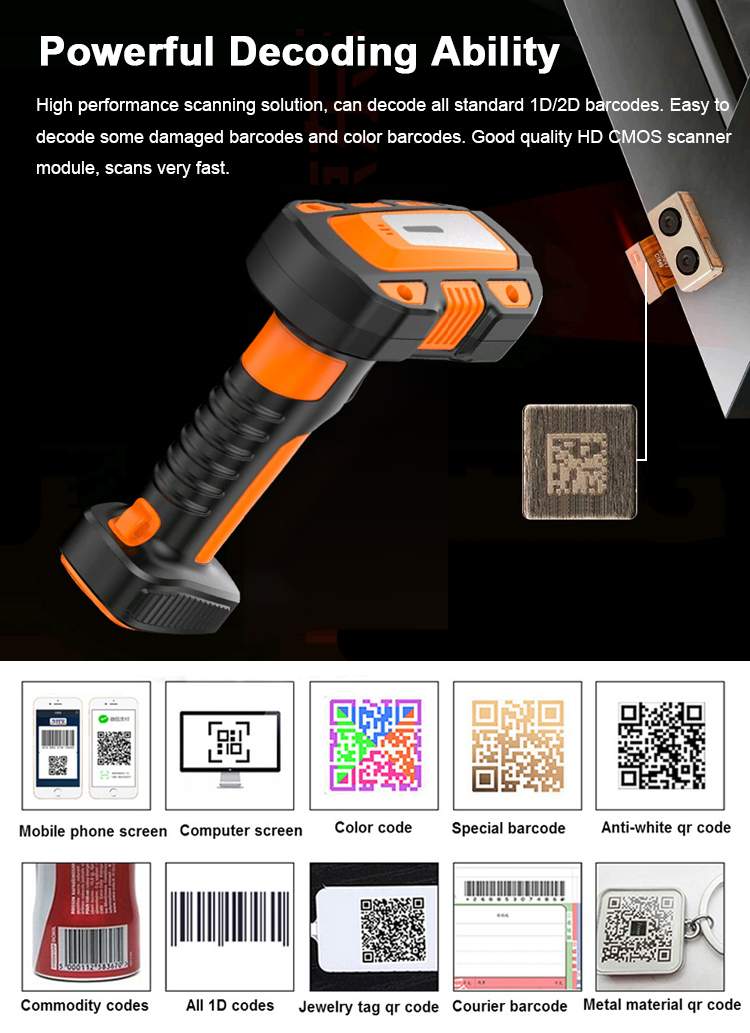

Decode Capability
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, Coda Bar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, etc

2D: QR Code, Data Matrix, PDF417, Micro QR, Maxi Code, Aztec Code, etc
Scan Depth

Code 39 (8.3mil): 45-420mm

PDF417 (6.7mil): 60-275mm

Data Matrix (10mil): 50-250mm

EAN 13(13mil):50-700mm

Read Angle
Roll: 360°, skew: 60°, pitch: 60°
Scan Angle
40°(Horizontal), 34°(Vertical)
Interface
USB
