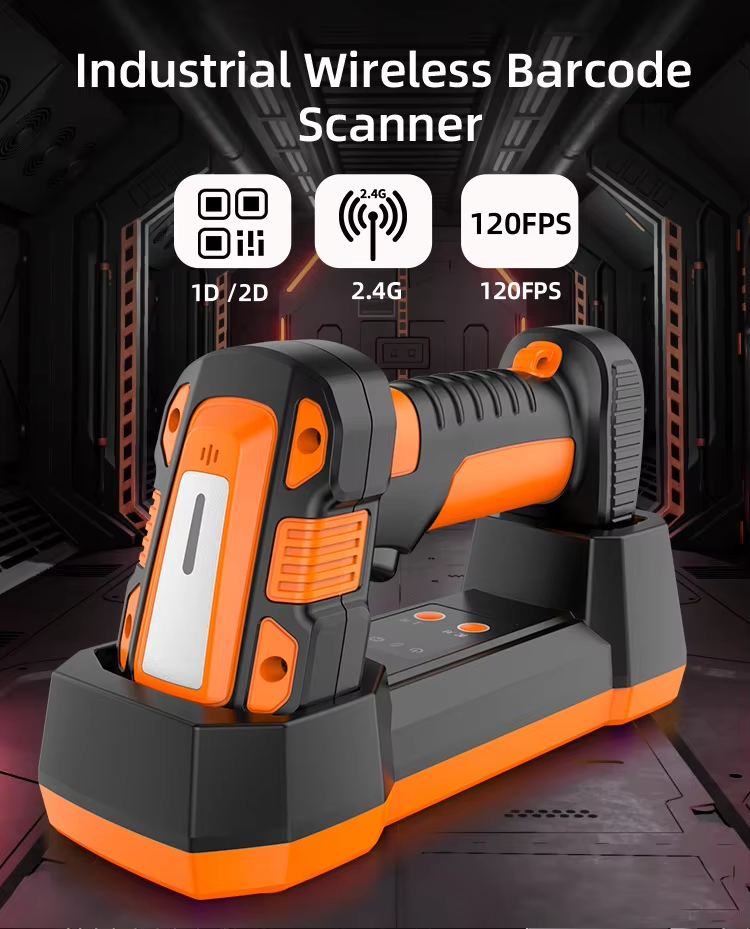

Y1-L(50) Industrial IP65 Waterproof Handheld Bluetooth Wireless 1D 2D QR Code Reader Barcode Scanner
Feature

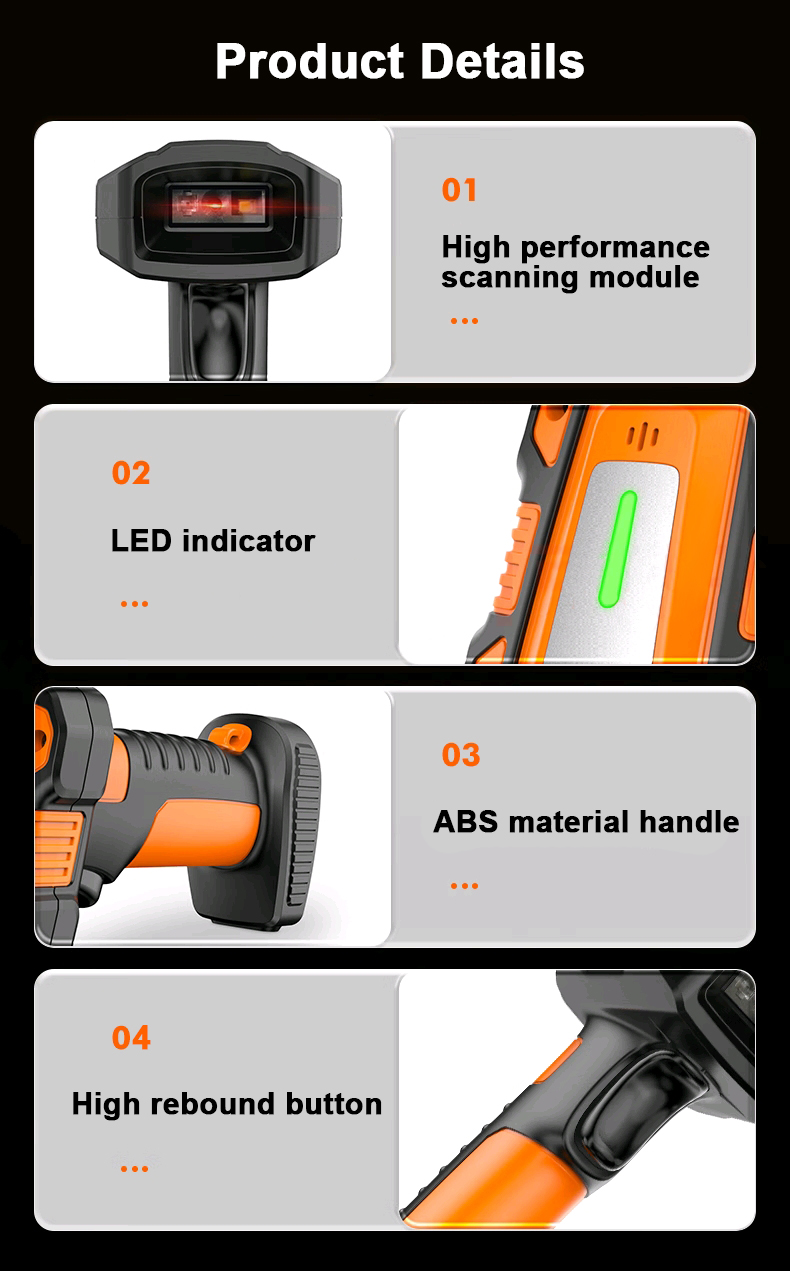

* High resolution 800*600 scanner module, scans very fast.

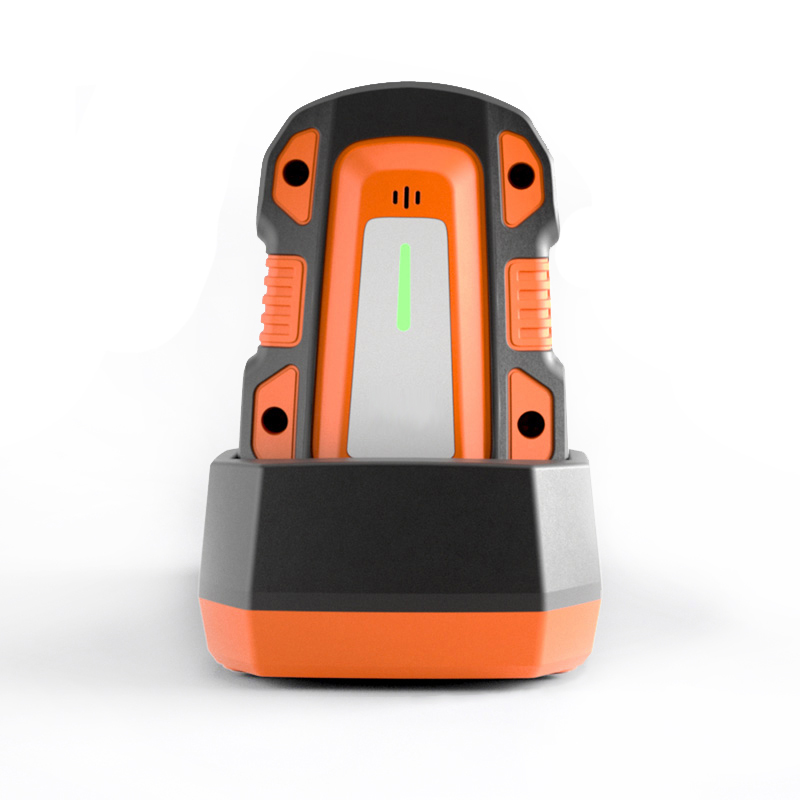

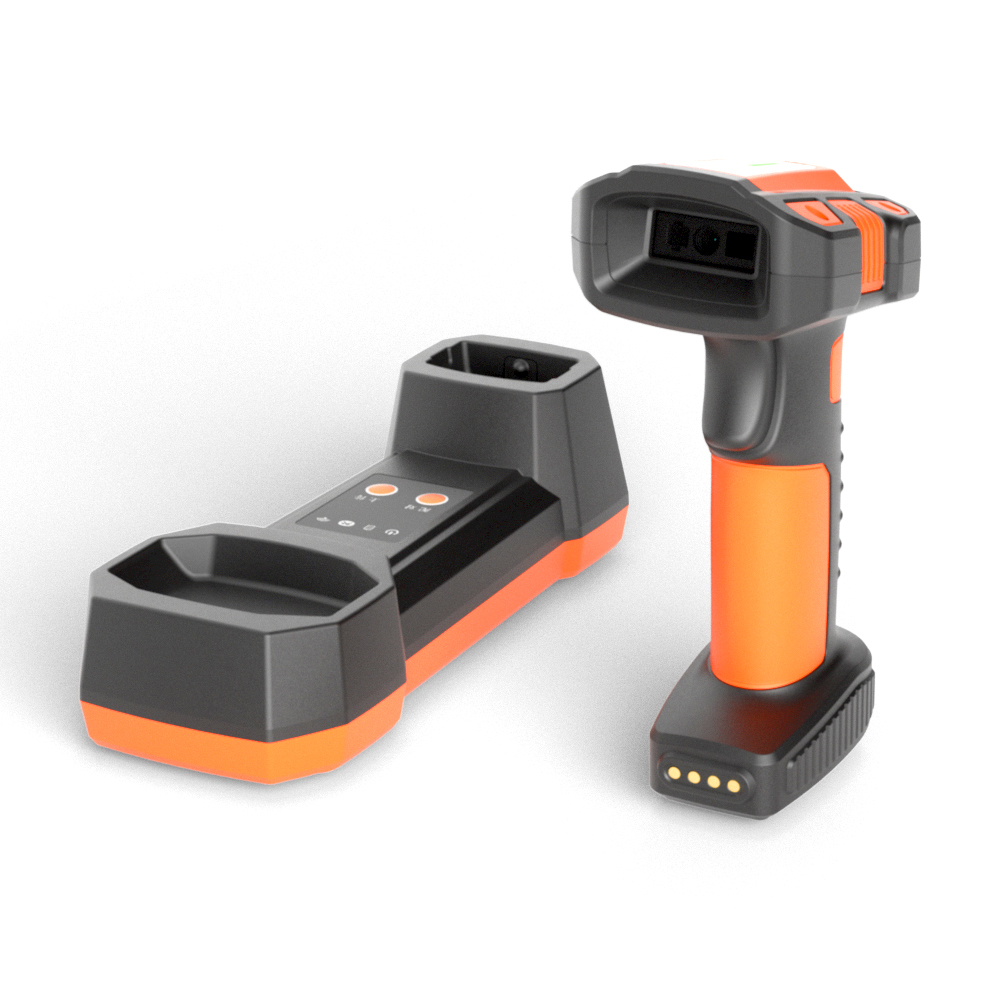

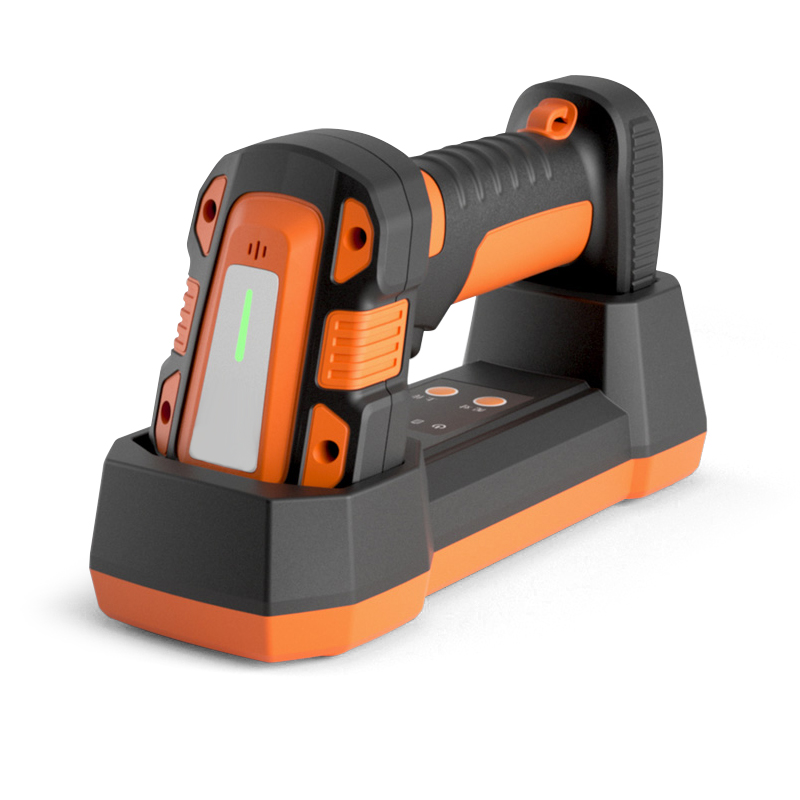

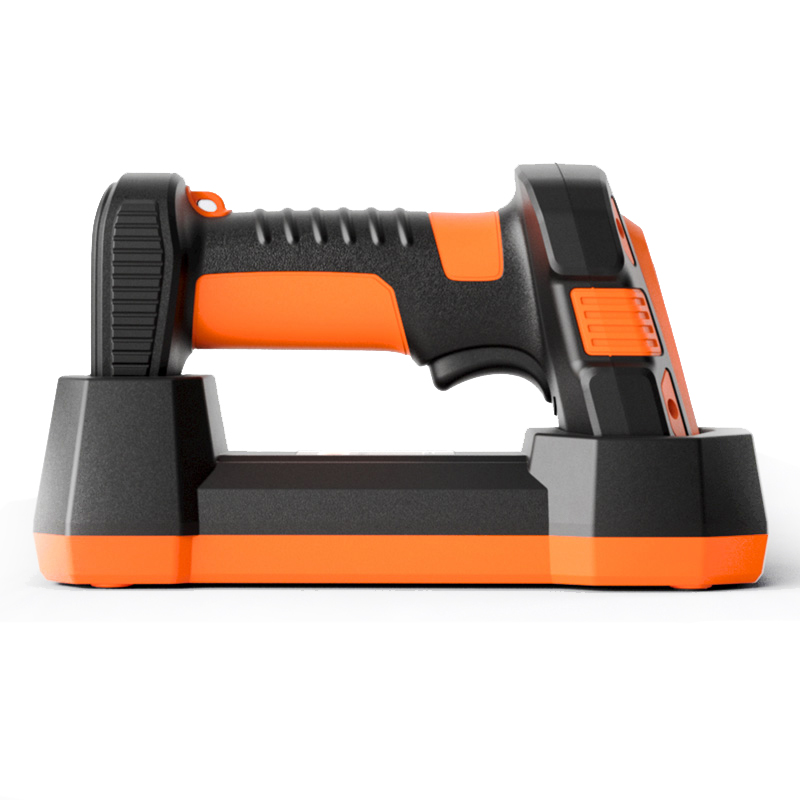

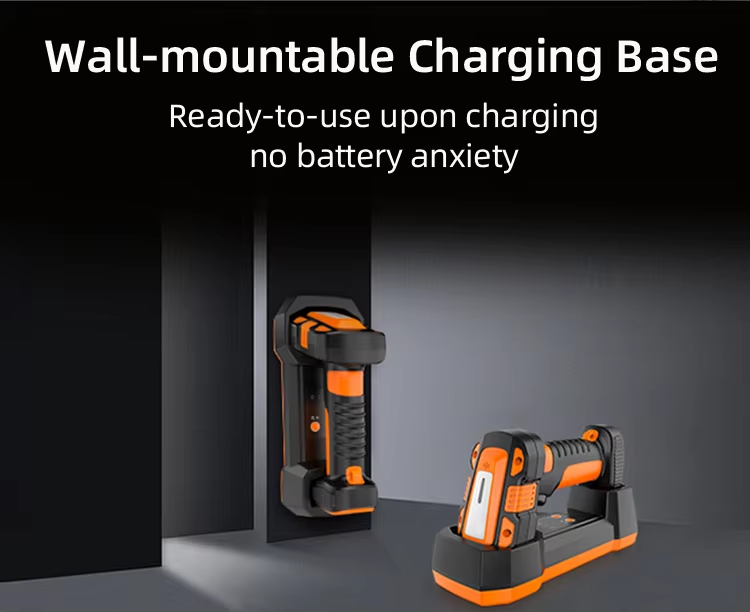

* The scanner comes with charging station, can call the connected scanner.
* High speed decoding, sensitive response.
* Built-in storage function, supporting the inventory mode.
* It can directly read bar codes on phone and computer screens.

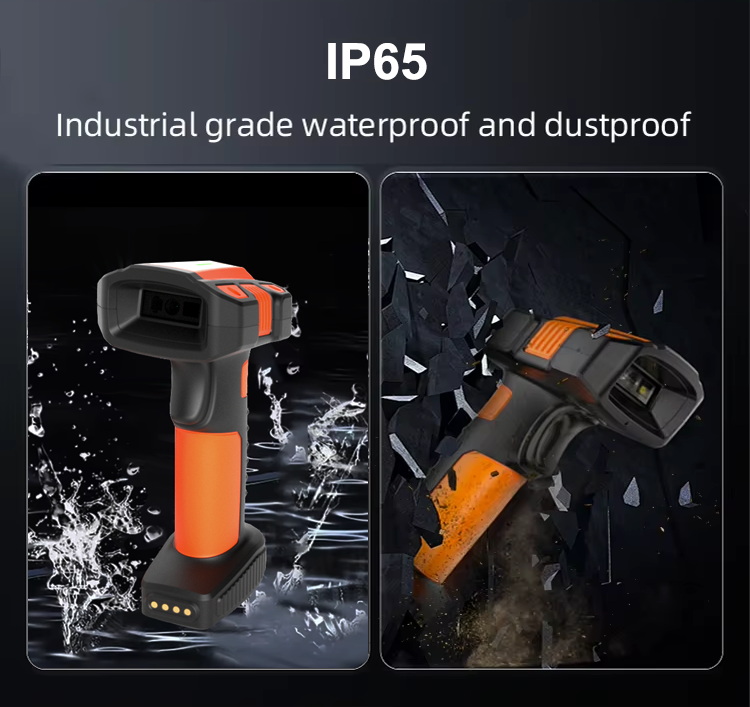

* Excellent durability: IP65, dustproof and waterproof

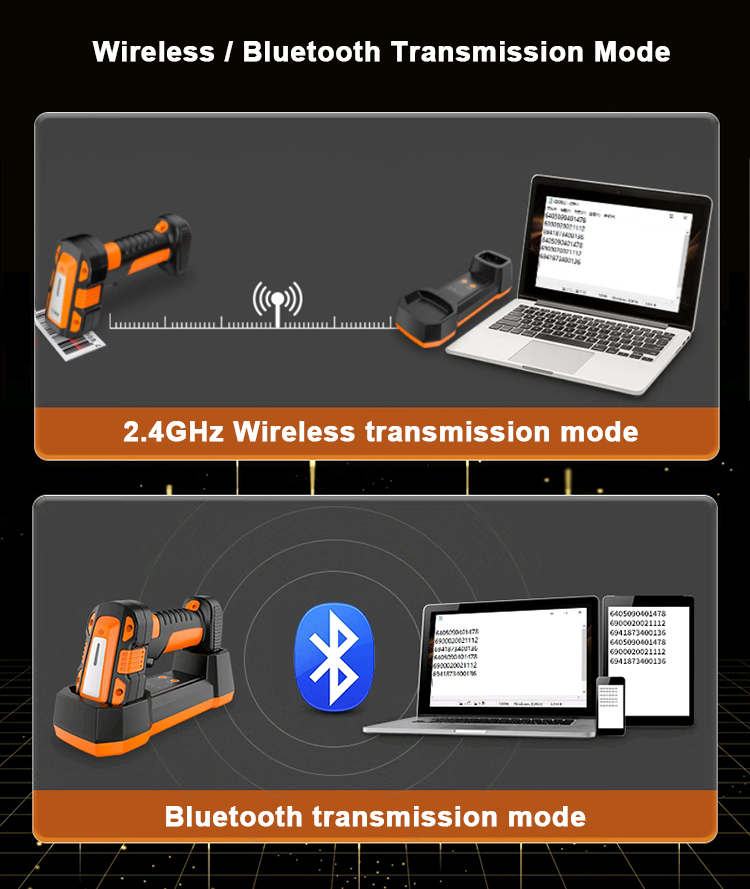

* Two transmission modes: wireless+Bluetooth
Feature
* High resolution 800*600 scanner module, scans very fast.
* The scanner comes with charging station, can call the connected scanner.
* High speed decoding, sensitive response.
* Built-in storage function, supporting the inventory mode.
* It can directly read bar codes on phone and computer screens.
* Excellent durability: IP65, dustproof and waterproof
* Two transmission modes: wireless+Bluetooth
Model Number | Y1-L |
Scan Sensor | CMOS 800*600 |
Environmental Sealing | IP65, waterproof |
Transmission Mode | Bluetooth (0-20m)+Wireless 2.4GHz (0~100m) |
Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |
Scan Speed | 300 scans/sec ±2% |
Scan Precision | ≥4mil |
Print Contrast | ≥15% |

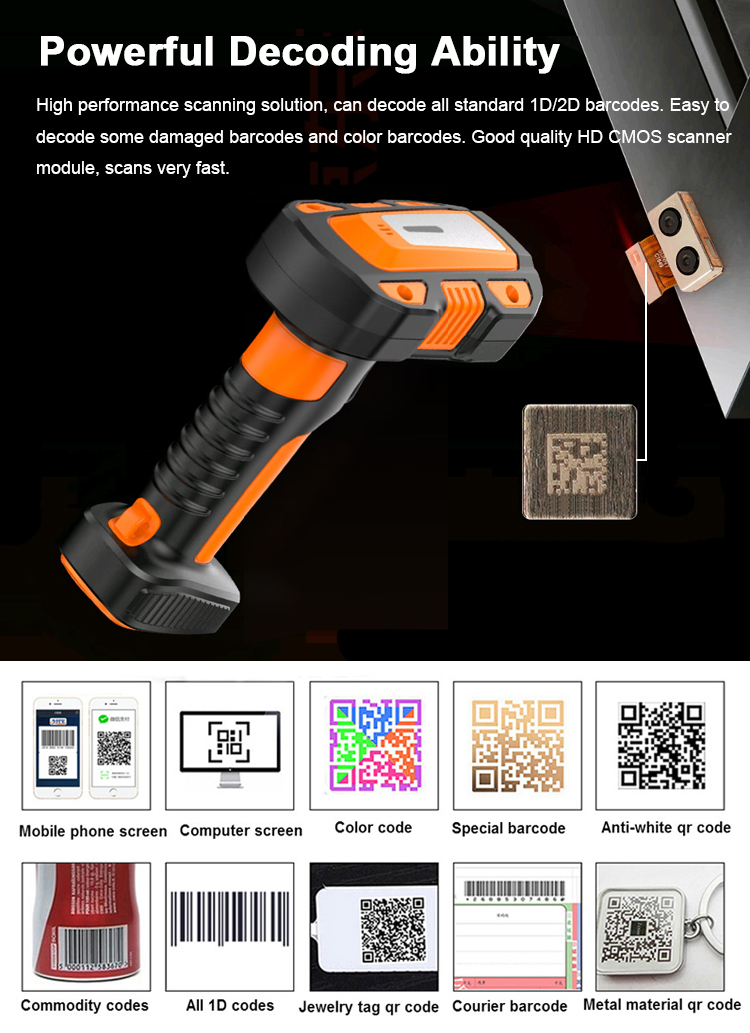

Scan Medium | 1D/2D barcodes |
Decode Capability | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite, etc 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, etc |
Scan Depth | Code 39 (8mil): 25-155mm PDF417 (6.7mil): 20-100mm Data Matrix (10mil): 15-65mm EAN 13(13mil):20-255mm |
Read Angle | Roll: 360°, skew: 60°, pitch: 60° |
Scan Angle | 40°(Horizontal), 34°(Vertical) |
Working Voltage | DC 5V±10% |
Current | Working: 350mA, Standby: 130mA |
Battery Capacity | 2500mAh |
Memory Capacity | 500KB |
