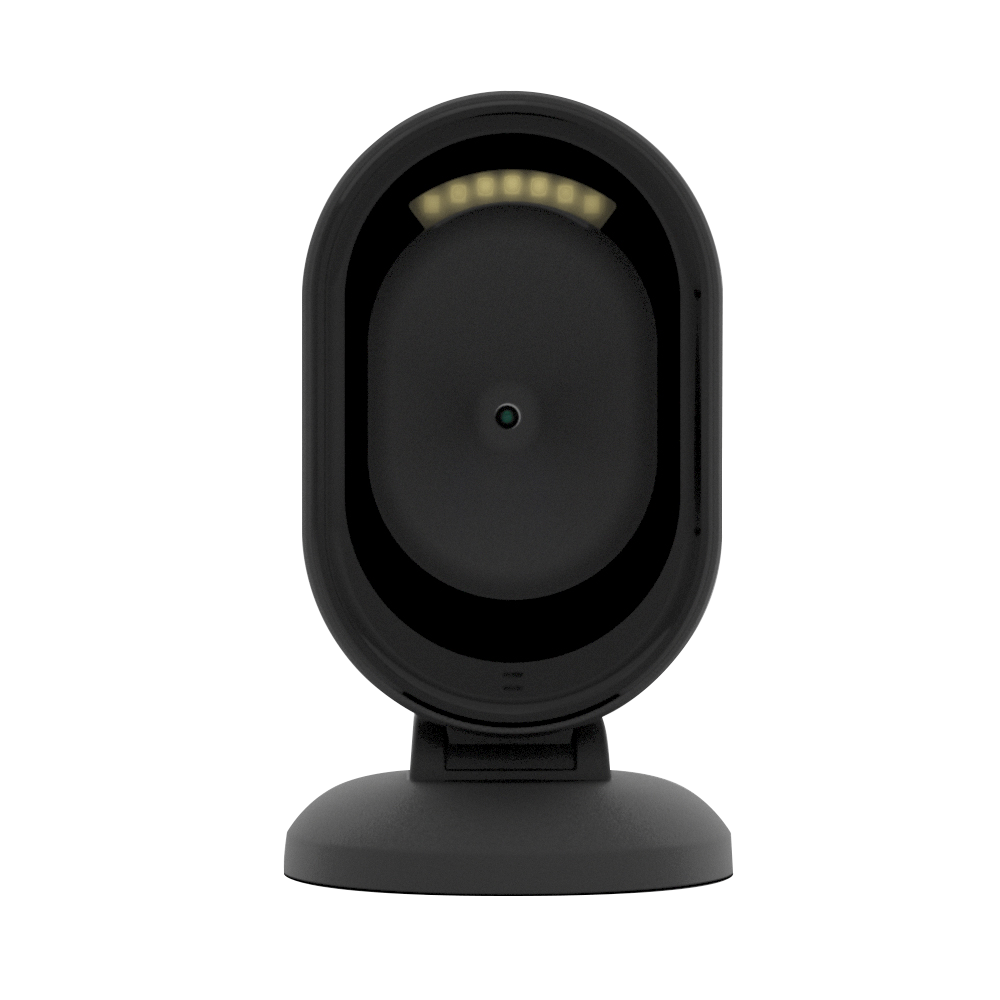

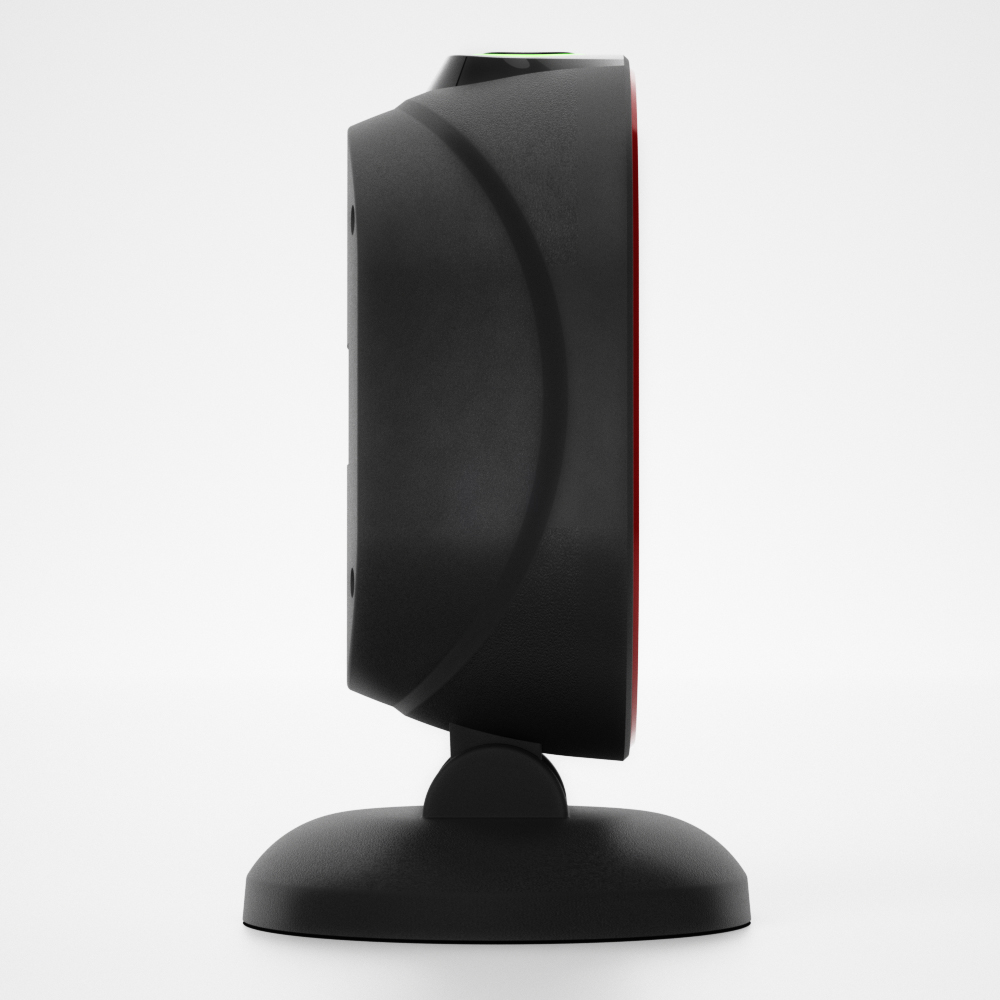

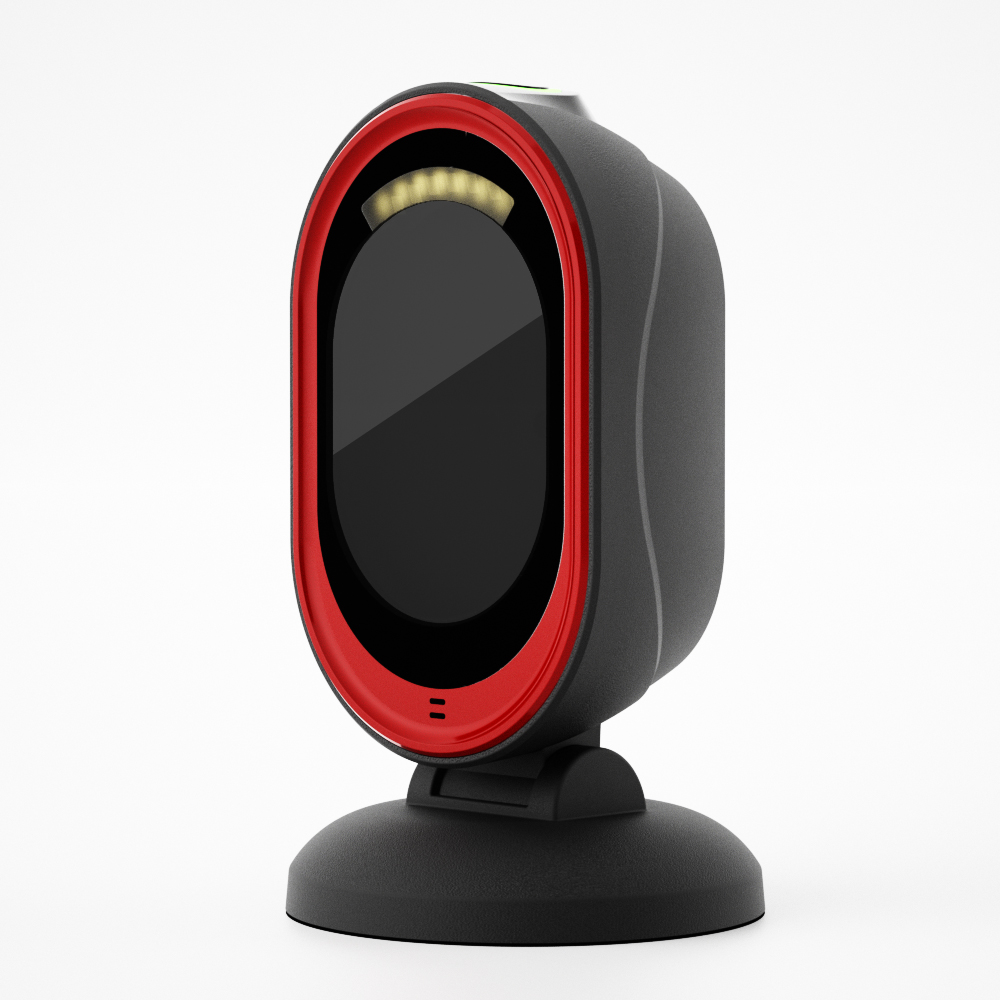

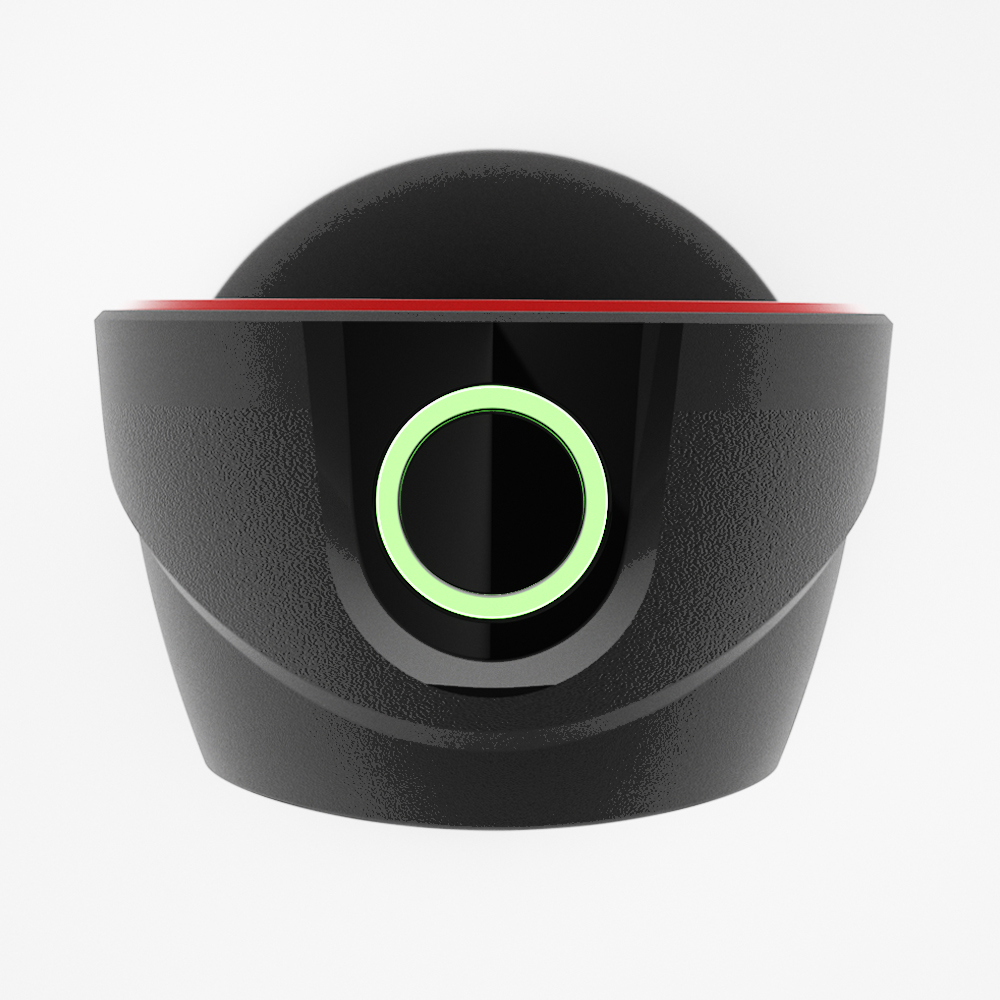

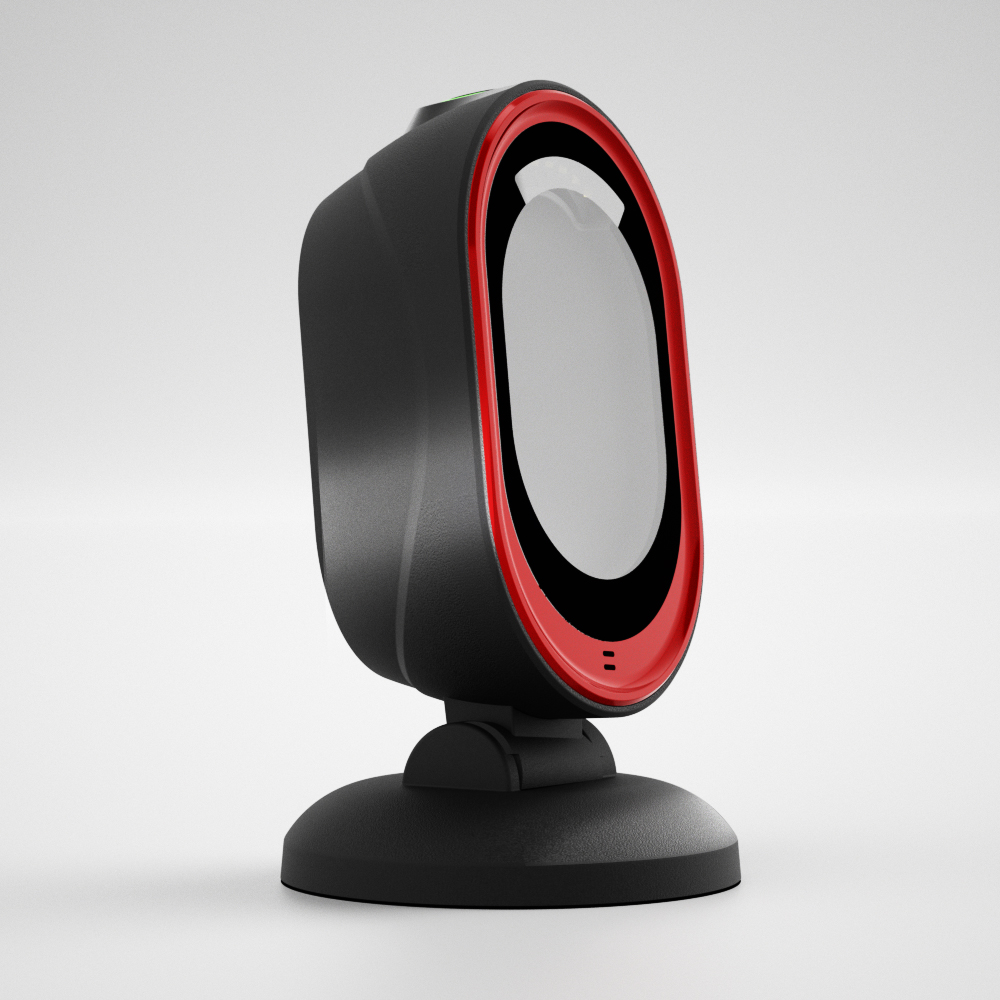

X30 High Speed Omnidirectional QR Code Reader Hands Free 2D Desktop Barcode Scanner
Feature
* Directly read bar codes on phone and computer screens.
* Equipped with a new 500,000 global exposure CMOS scanning engine

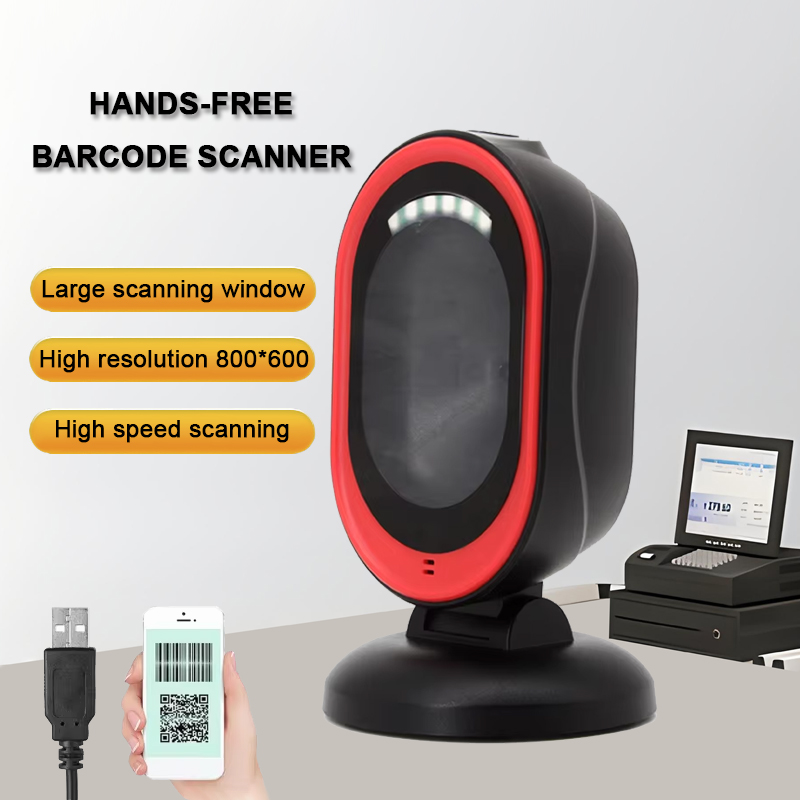

* Larger scanning window, easier to read barcodes

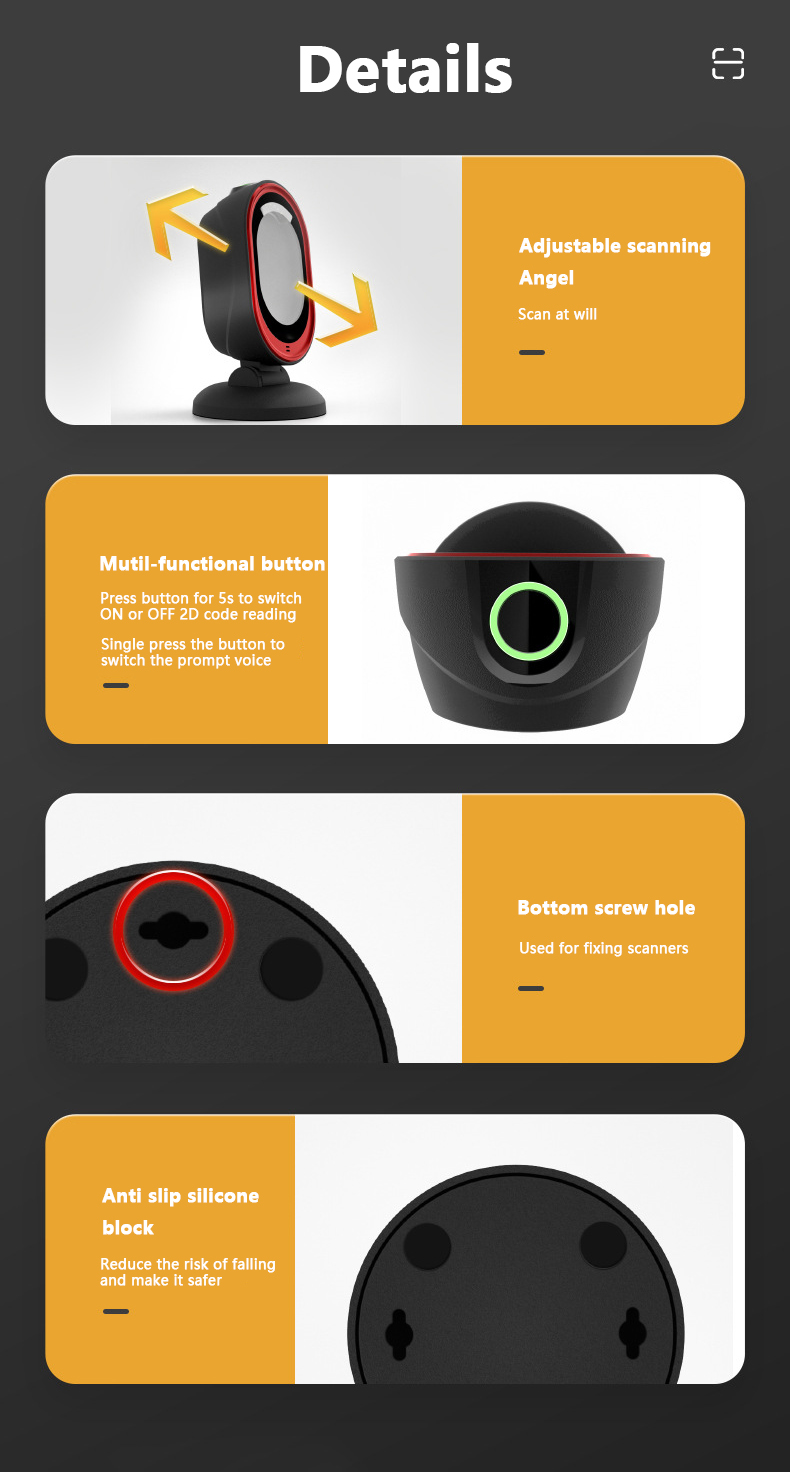

* Adjustable angle, flexible and easy to use
* Common function buttons, easier to setup
* 5 different styles of prompt sound, soft and bright LED indicators
* Multiple interfaces, strong compatibility, support a variety of systems and cash registers
Feature
* Directly read bar codes on phone and computer screens.
* Equipped with a new 500,000 global exposure CMOS scanning engine
* Larger scanning window, easier to read barcodes
* Adjustable angle, flexible and easy to use
* Common function buttons, easier to setup
* 5 different styles of prompt sound, soft and bright LED indicators
* Multiple interfaces, strong compatibility, support a variety of systems and cash registers
Model Number | X30 |
Scan Mode | CMOS 800*600 |
Scan Mode | Automatic induction scanning |
Transmission Mode | Wired via USB cable |
Scan Speed | 120 fpt/sec |
Scan Precision | 1D≥3mil, 2D≥5mil |
Print Contrast | ≥20% |

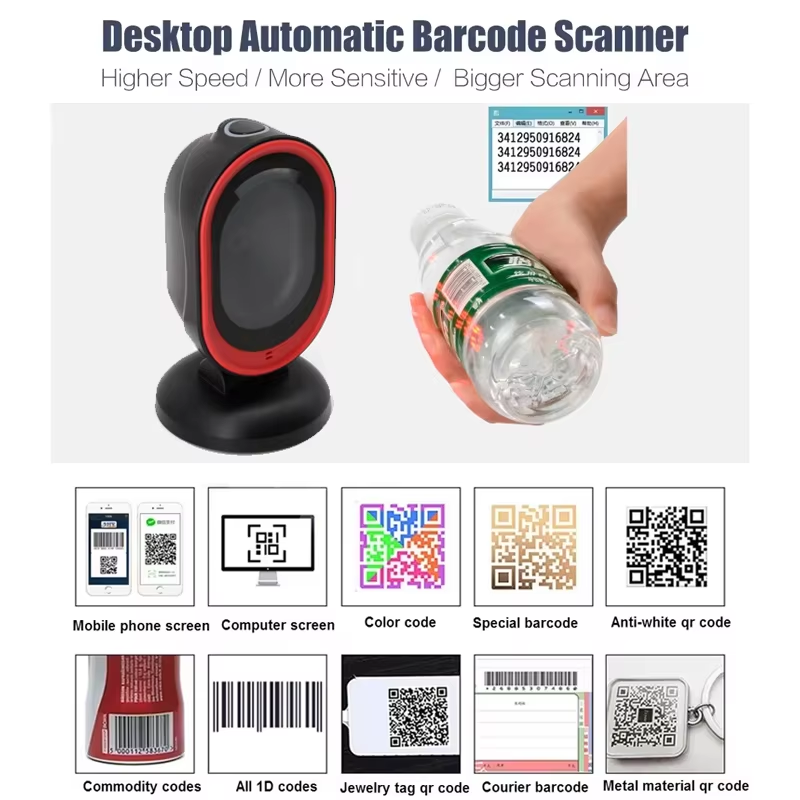

Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite, etc 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, etc |
Field of View | 48° (H) x 30° (V) |
Scan Angle | Pitch: ±60°, Skew: ±54°, Roll: ±360° |
Communication Interface | USB-HID, USB-COM |
Voltage | DC 5V±10% |
Current | Working: 240mA, Standby: 190mA |
