Product Description
Feature

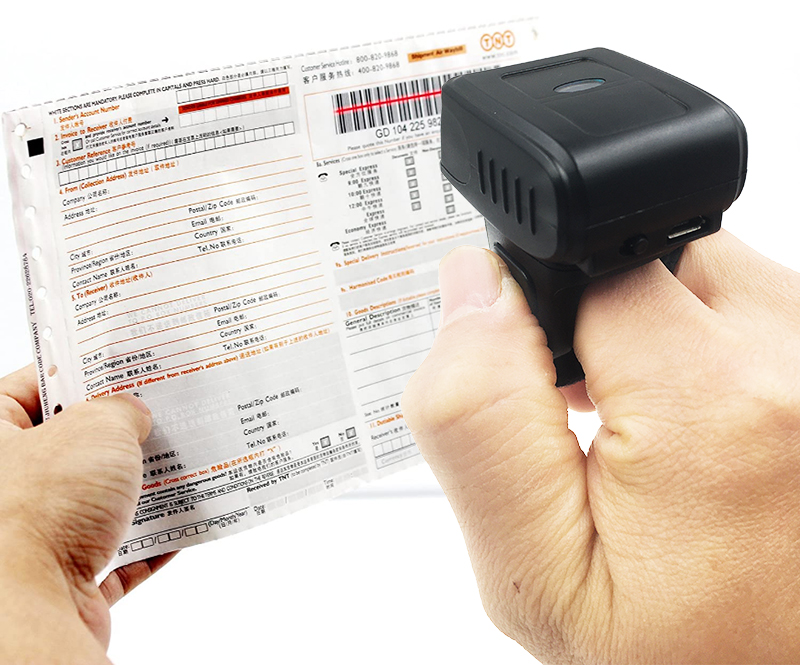

* It can directly read bar codes on phone and computer screens.

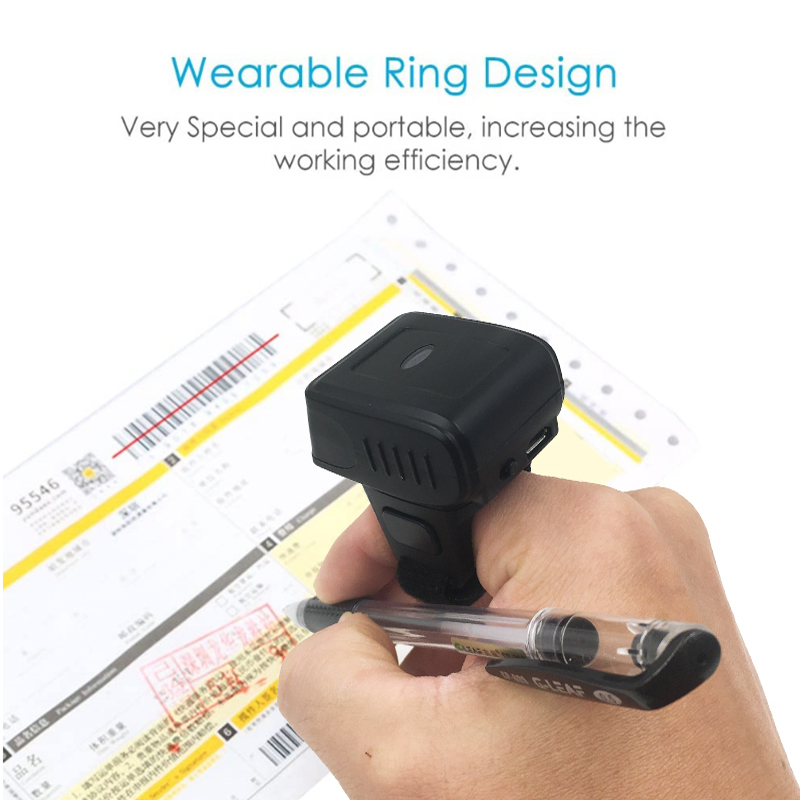

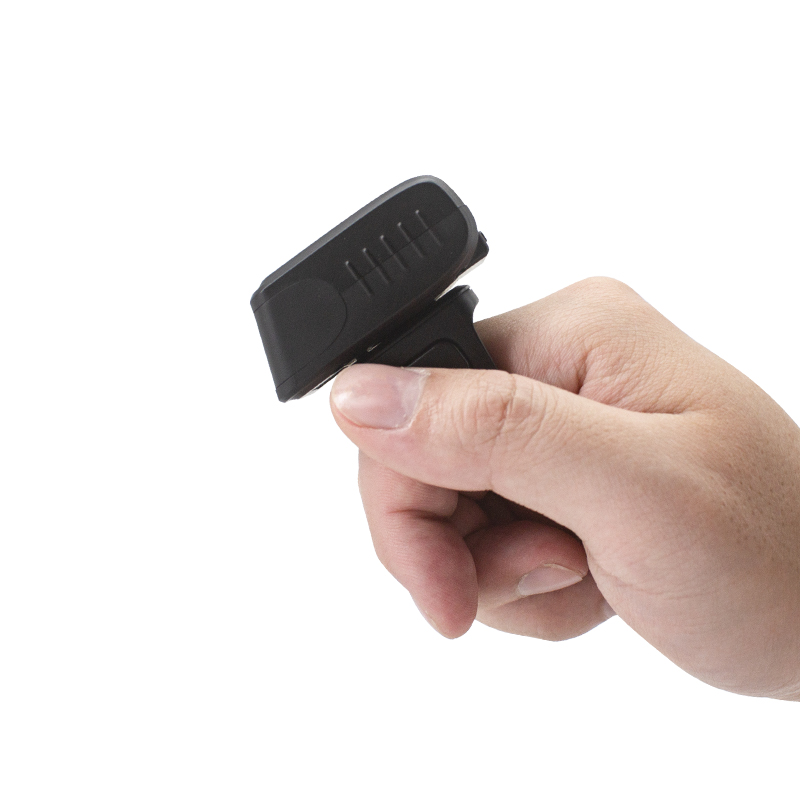

* Small size finger ring type scanner.
* Transmission mode: Bluetooth+wireless
Specification
Model Number | R68 |
Scan Sensor | CMOS 750*480 |
Light Source | 625±10nm red LED |
Transmission Mode | Wireless (0-100m)+BT (0-15m) |
Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |
Scan Speed | 250 scans/sec ±2% |
Scan Precision | ≥5mil |
Print Contrast | ≥20% |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |

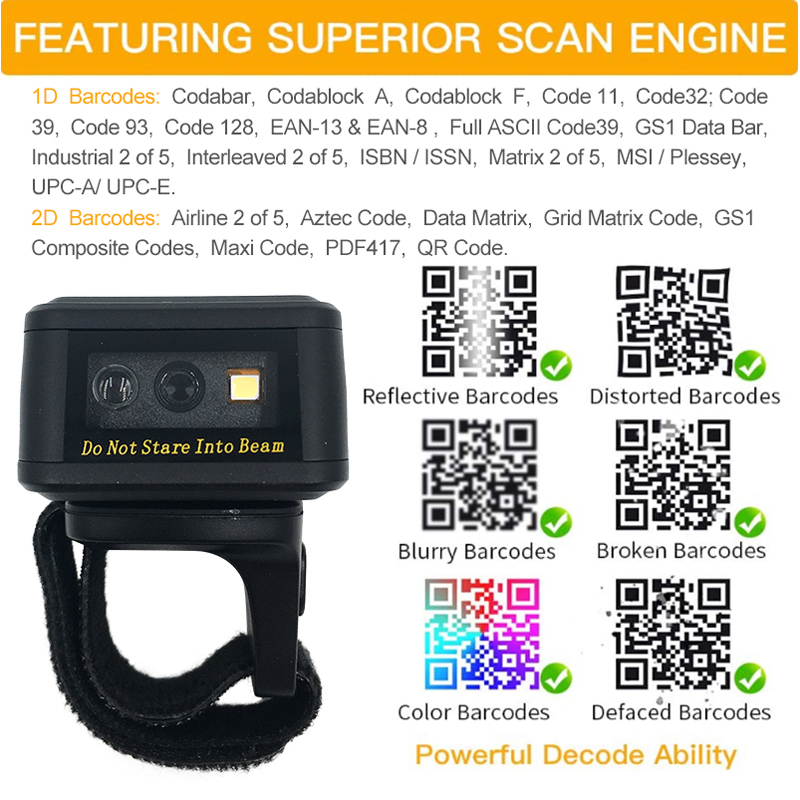

Decode Capability | 1D: Code 11, Code 32, Code 39, Code 93, Code 128, EAN-13, EAN-8, Full ASCII Code39, GS1 Data Bar, Industrial 2 of 5, Interleaved 2 of 5, ISBN / ISSN, Matrix 2 of 5, MSI / Plessey, UPC-A, UPC-E, Codabar, etc 2D: QR Code, PDF417, Aztec Code, Data Matrix, Maxi Code, etc |
Scan Depth | EAN 13 (13mil): 50mm -195mm, Code 39 (5mil): 50mm -105mm, PDF417 (6.67mil): 35mm - 135mm, Data Matrix (10mil): 35mm - 140mm, QR Code (15mil): 30mm - 165mm |
Read Angle | Roll: 360°, skew: ±65°, pitch: ±60° |
Scan Angle | 34°(Horizontal), 46°(Vertical) |
Battery | 320Mah |
Charging Time | 2-3 hours |
Use Times | 35000 times |
Working Voltage | 3.3V~4.2V ±5% |
Max. Current | 240mA |
Interface | USB |
