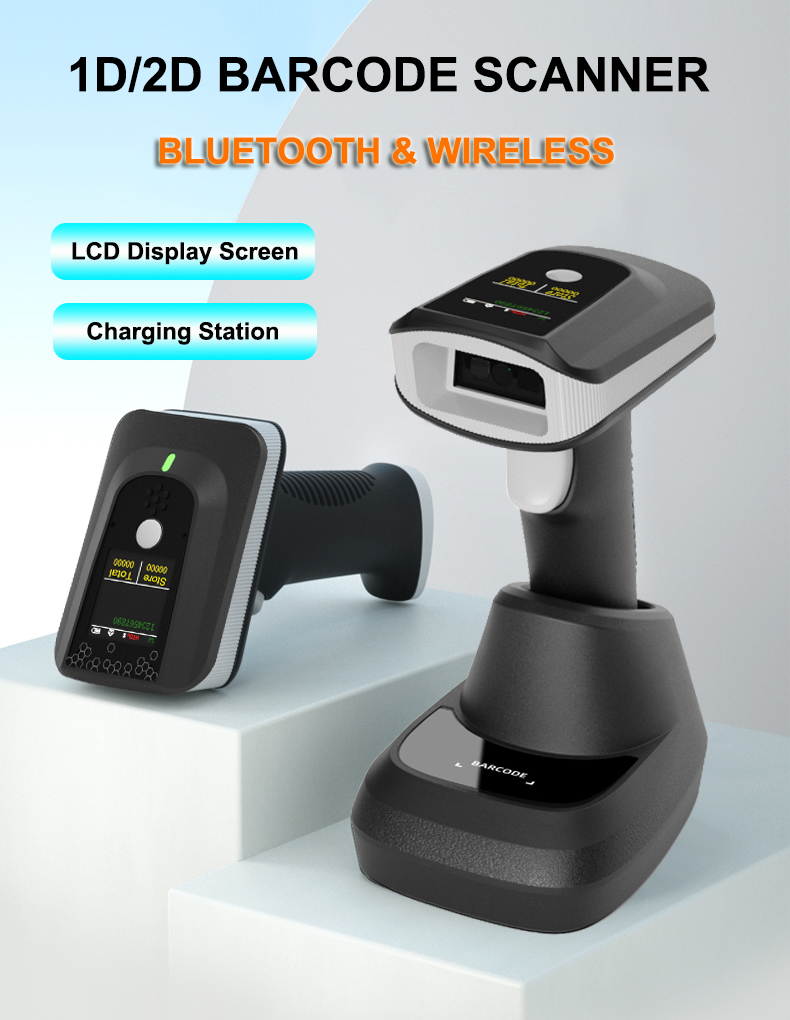

W10T-LS High Performance QR Code Reader USB Wireless Bluetooth 2D Barcode Scanner with Display Screen
Feature

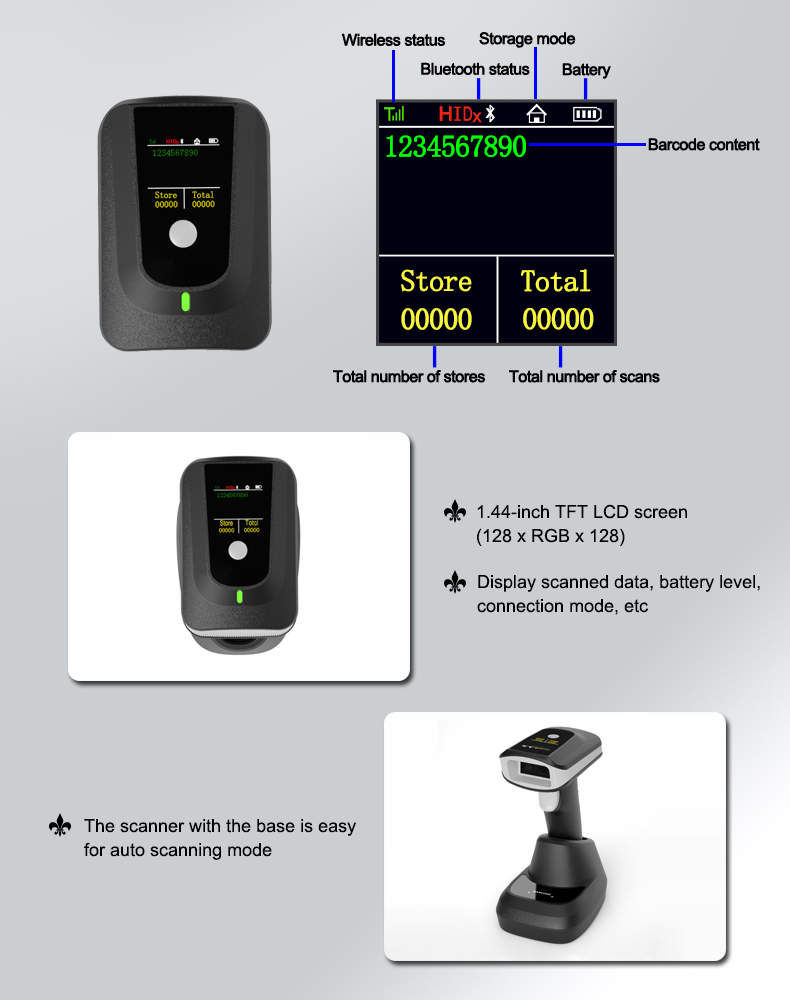

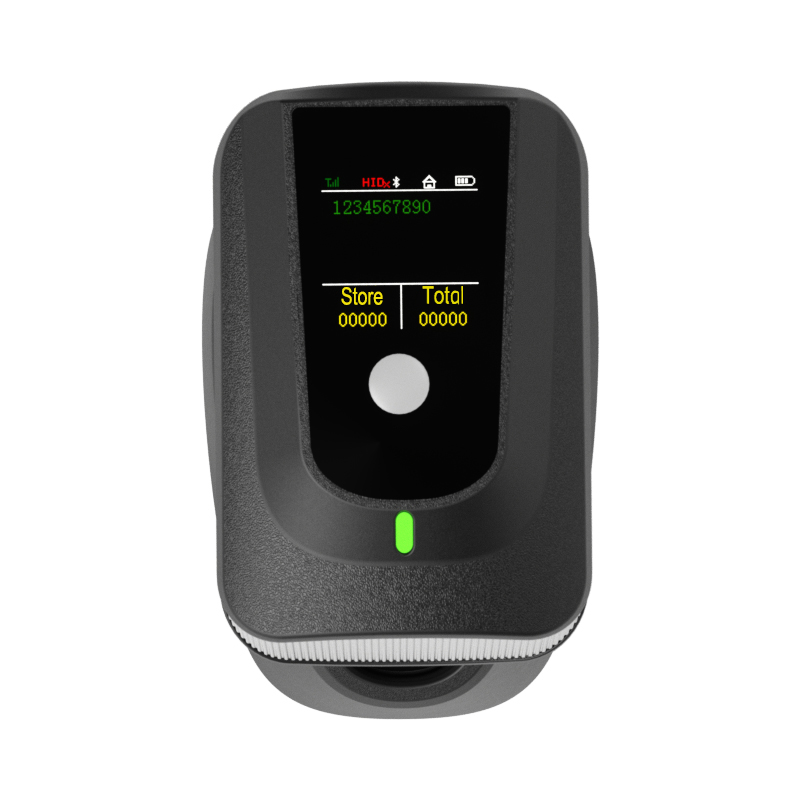

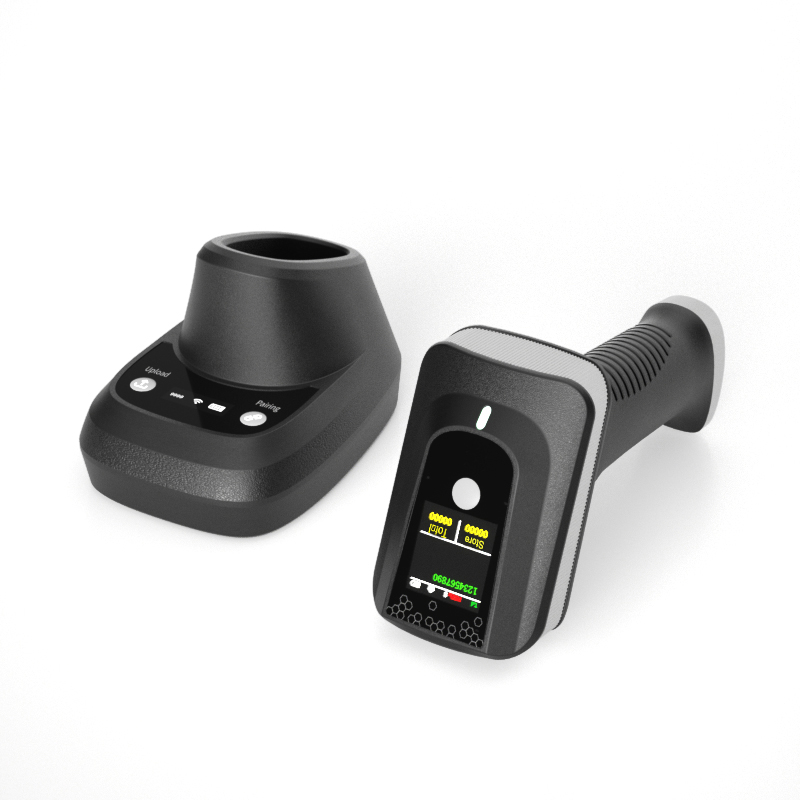

* 1.44-inch TFT LCD screen (128×RGB×128)

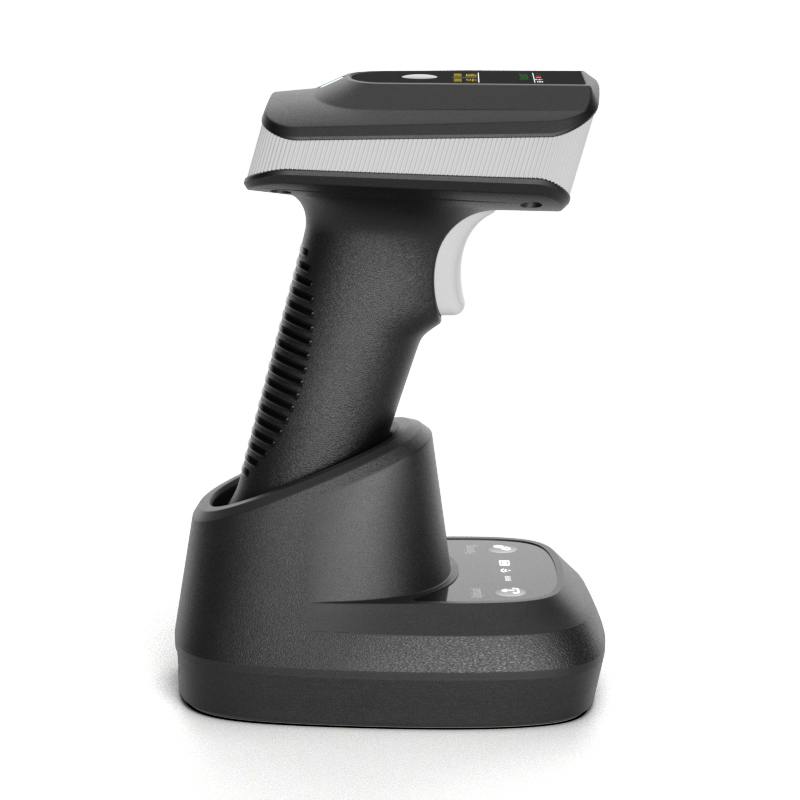

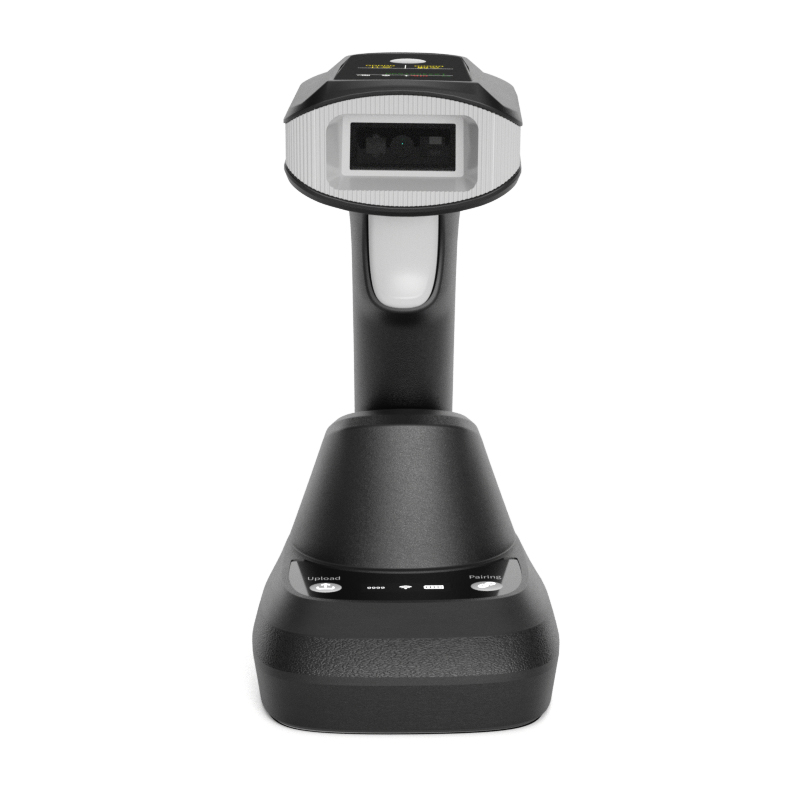

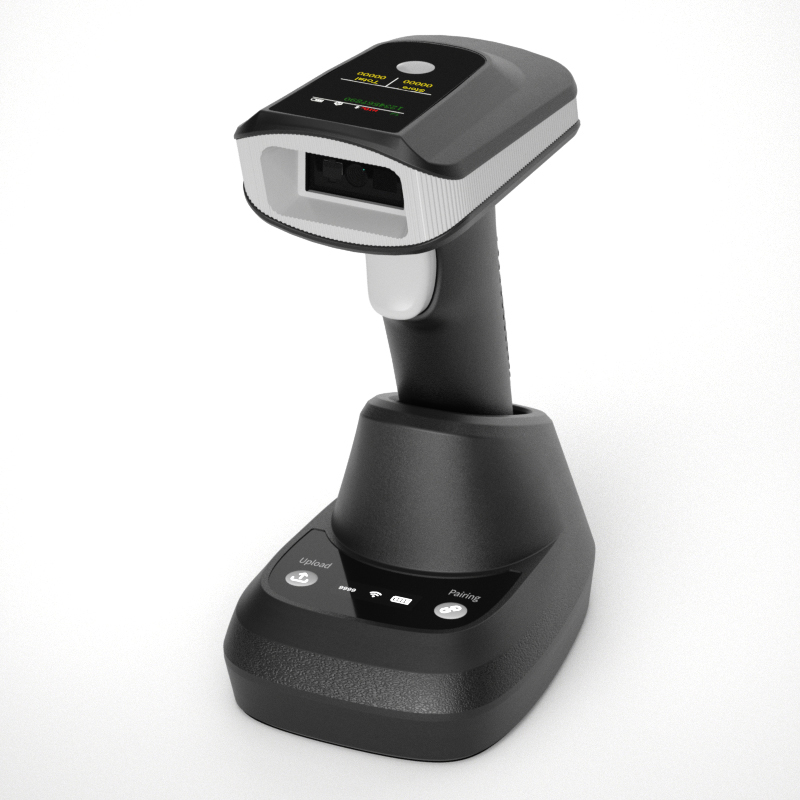

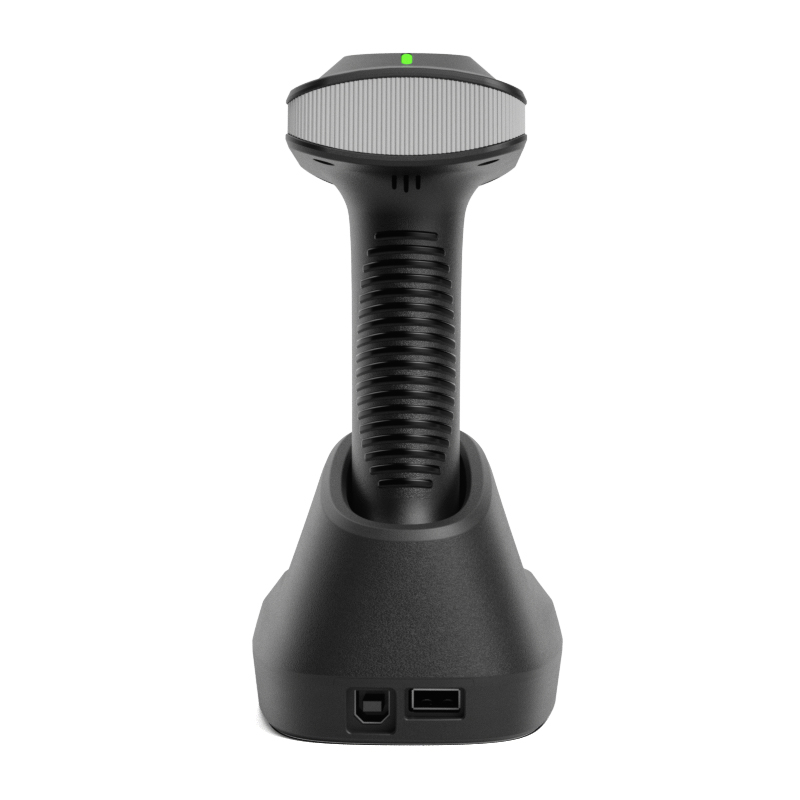

* The scanner comes with charging station, the base is good for auto scanning
* High speed decoding, sensitive response
* Built-in storage function, supporting the inventory mode

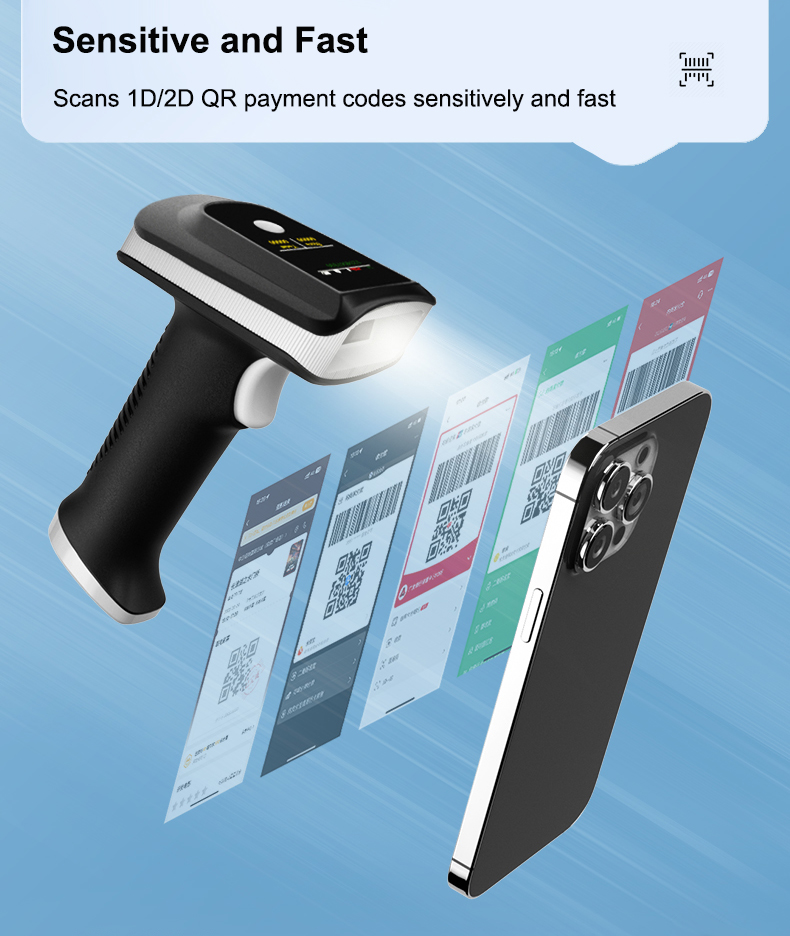

* It can directly read barcodes in printing or on phone and computer screens
* 3 in 1 transmission mode: wireless+Bluetooth+USB cable
0.00
0.00
Product Description
Feature
* 1.44-inch TFT LCD screen (128×RGB×128)
* The scanner comes with charging station, the base is good for auto scanning
* High speed decoding, sensitive response
* Built-in storage function, supporting the inventory mode
* It can directly read barcodes in printing or on phone and computer screens
* 3 in 1 transmission mode: wireless+Bluetooth+USB cable
Specification
Model Number | W10T-LS |
Scan Sensor | CMOS 640*480 |
Display | 1.44-inch TFT LCD screen (128 x RGB x 128) |
Transmission Mode | Wireless (0-100m) + Bluetooth (0-20m) + USB cable |
Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |
Scan Speed | 300 scans/sec ±2% |
Scan Precision | ≥4mil |
Print Contrast | ≥15% |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code 93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc |
Scan Depth | QR (20mil): 15~160mm Data Matrix (10mil): 5~110mm PDF 417 (7mil): 30~125mm EAN-13 (13mil): 30~200mm Code 39 (8mil): 20~145mm Code 128 (7mil): 15~135mm |
Read Angle | Roll: ±360°, skew: ±60°, pitch: ±60° |
Input Voltage | DC 5V±10% |
Current | Working: 350mA, Standby: 130mA |

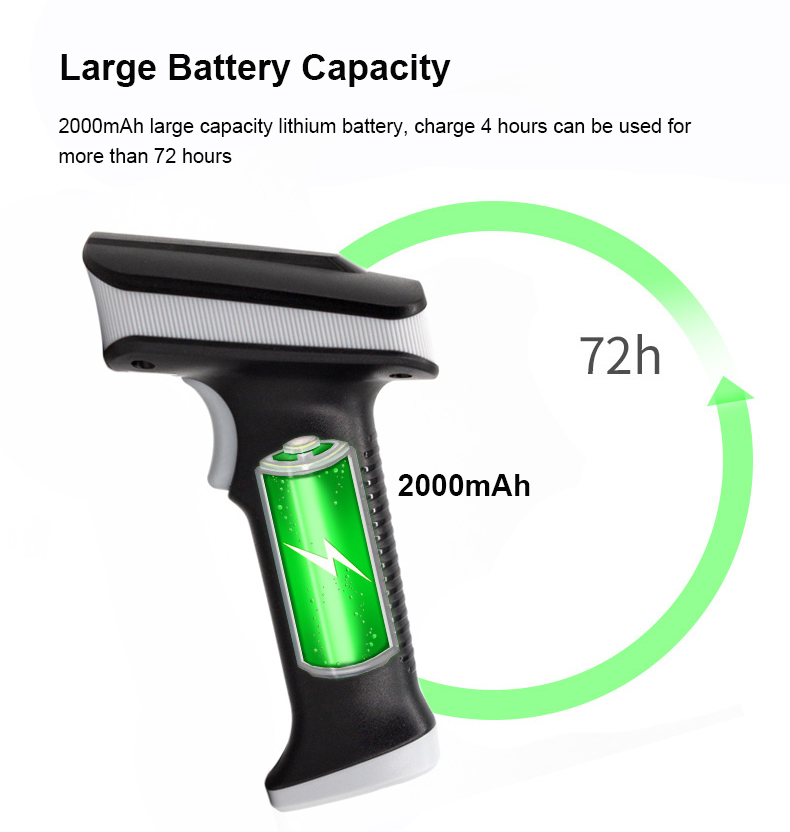

Battery Capacity | 2000Mah |
Charging Time | 4 hours |
Battery Life | 10 days (standby), 24 hours (working: scan every 5 seconds) |
Interface | USB |
USB Cable Length | 1m |
Product Size | 157mm*70mm*112mm (barcode scanner), 128mm*81mm*89mm (base) |
Net Weight | 173g (not including cable and base) |
