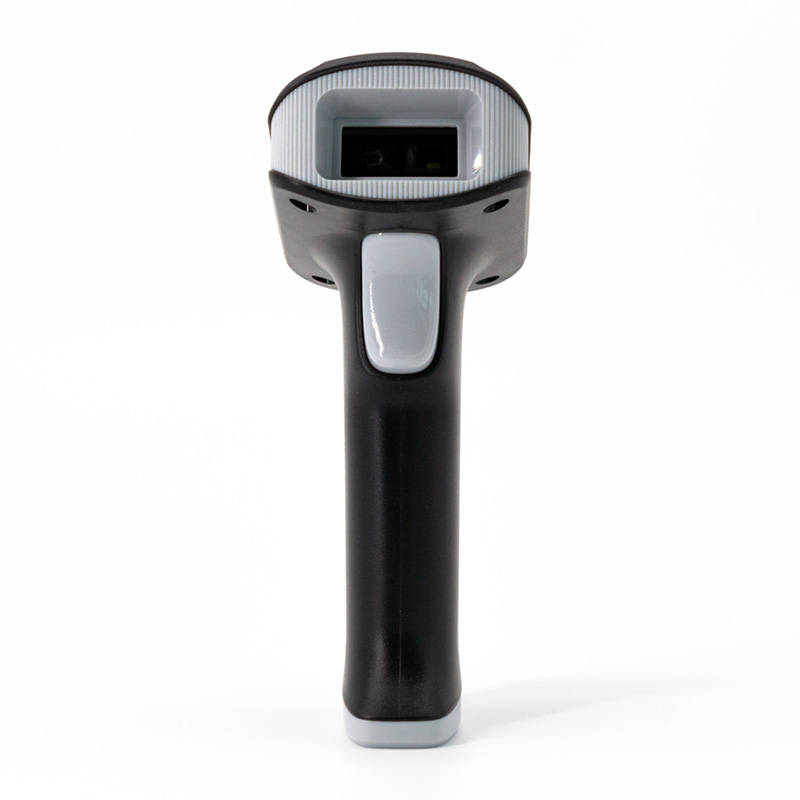

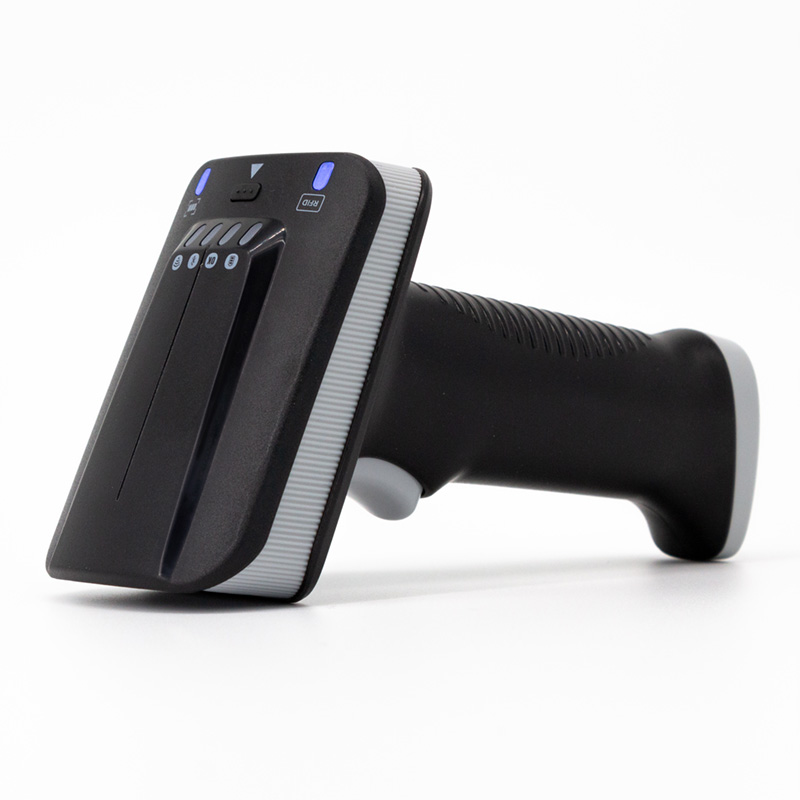

W11-W RFID Warehouse Inventory Checking Handheld QR Code Reader Bluetooth Wireless 2D Barcode Scanner
Feature
* High speed decoding, sensitive response
* Supports ISO 18000-6C ultra-high frequency card reading and barcode scanning

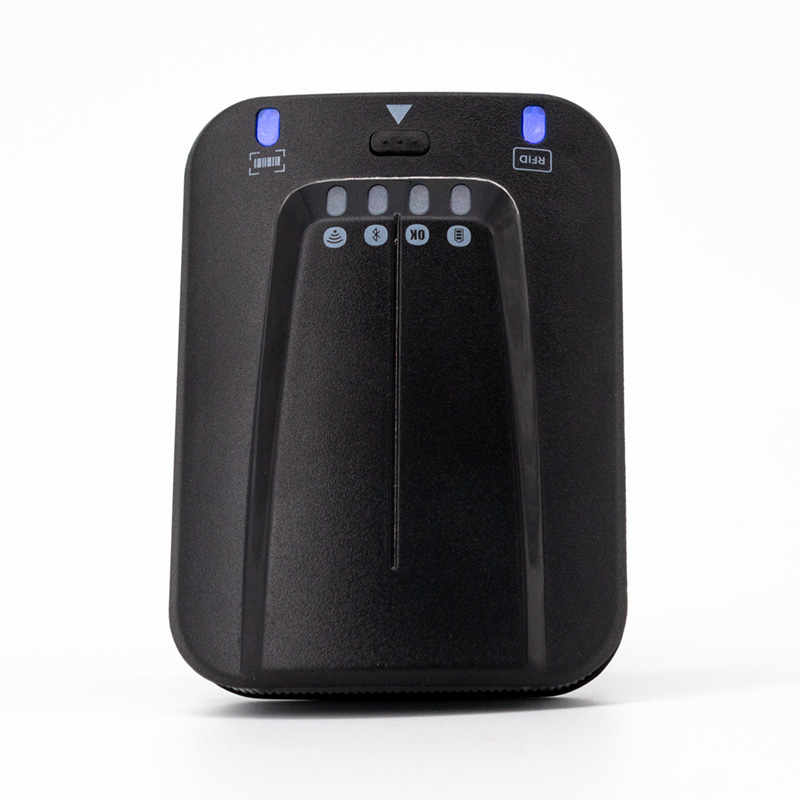

* Equipped with vibration feedback and four color indicator light prompts
* Built in storage function, supporting inventory mode
* Excellent durability: IP54, withstands the impact of falling from 1.5m height
* Directly read barcodes in printing or on phone and computer screens
* 3 in 1 transmission mode: wireless+Bluetooth+USB cable
Feature
* High speed decoding, sensitive response
* Supports ISO 18000-6C ultra-high frequency card reading and barcode scanning
* Equipped with vibration feedback and four color indicator light prompts
* Built in storage function, supporting inventory mode
* Excellent durability: IP54, withstands the impact of falling from 1.5m height
* Directly read barcodes in printing or on phone and computer screens
* 3 in 1 transmission mode: wireless+Bluetooth+USB cable
Model Number | W11-W |
Scan Sensor | CMOS 640*480 |

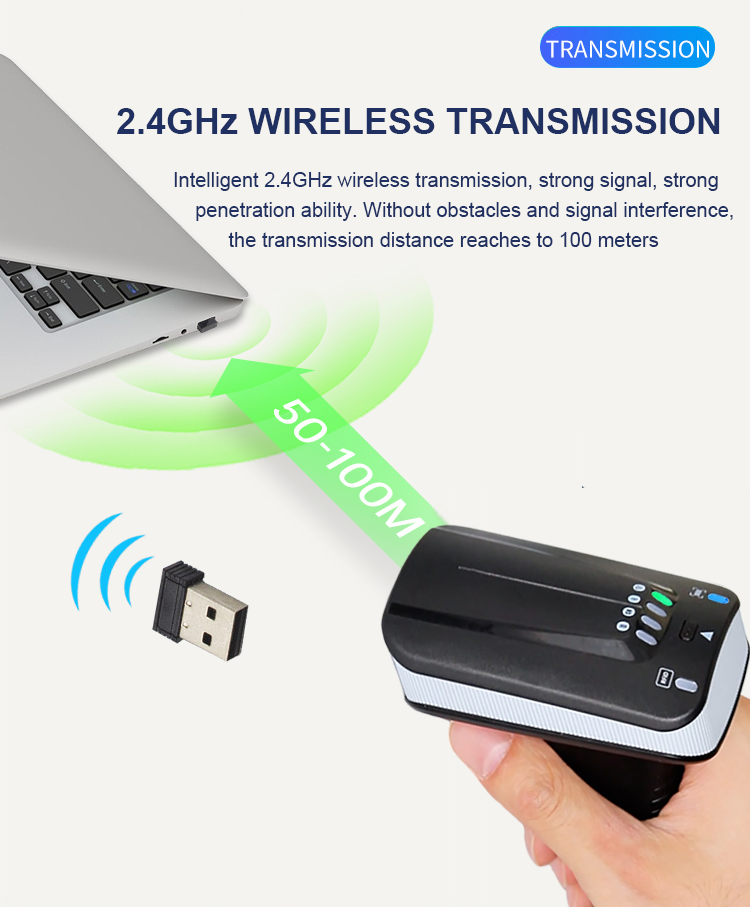

Transmission Mode | Wireless (0-100m) + Bluetooth (0-20m) + USB cable |

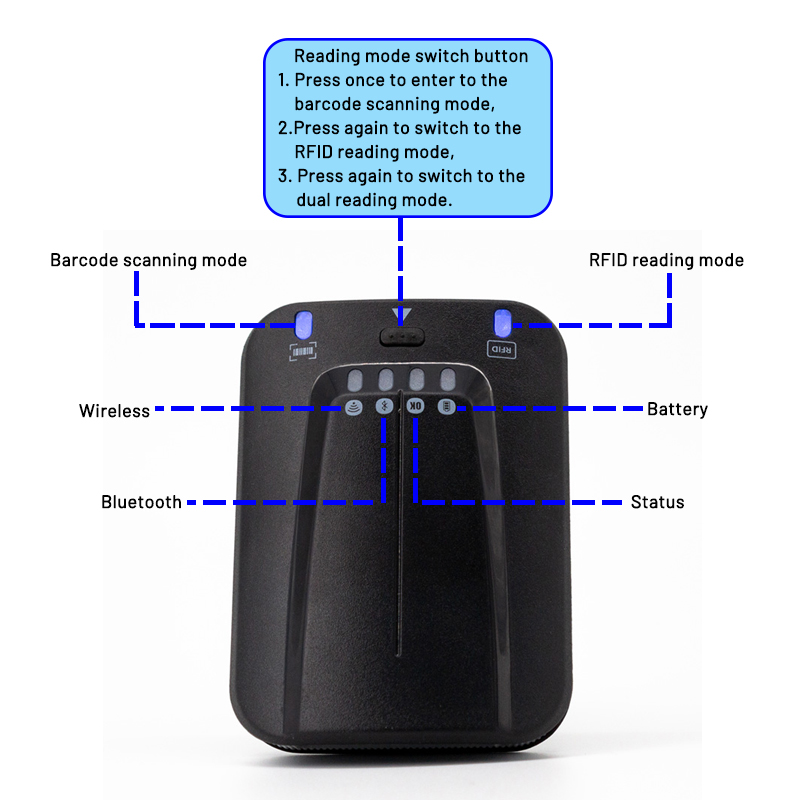

Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |
Scan Speed | 300 scans/sec ±2% |
Scan Precision | 1D≥3mil, 2D≥5mil |
Print Contrast | ≥15% |
Prompt Way | Beeper, LED indicator, vibration feedback |
RFID Reading | Working frequency: 902~928MHz (can be adjusted according to different countries or regions) Card reading type: ISO 18000-6C (EPC C1G2) Card reading speed: 0.1s Card reading time: ＜100ms Card reading distance: 0-50cm (6C normal card) |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code 93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc |
Scan Depth | QR (20mil): 15~215mm Data Matrix (10mil): 10~70mm PDF 417 (7mil): 25~115mm EAN-13 (13mil): 25~270mm Code 39 (7mil): 25~170mm Code 128 (8.3mil): 30~180mm |
Read Angle | Roll: ±360°, skew: ±60°, pitch: ±60° |
Input Voltage | DC 5V±10% |
Current | Working: 350mA, Standby: 130mA |

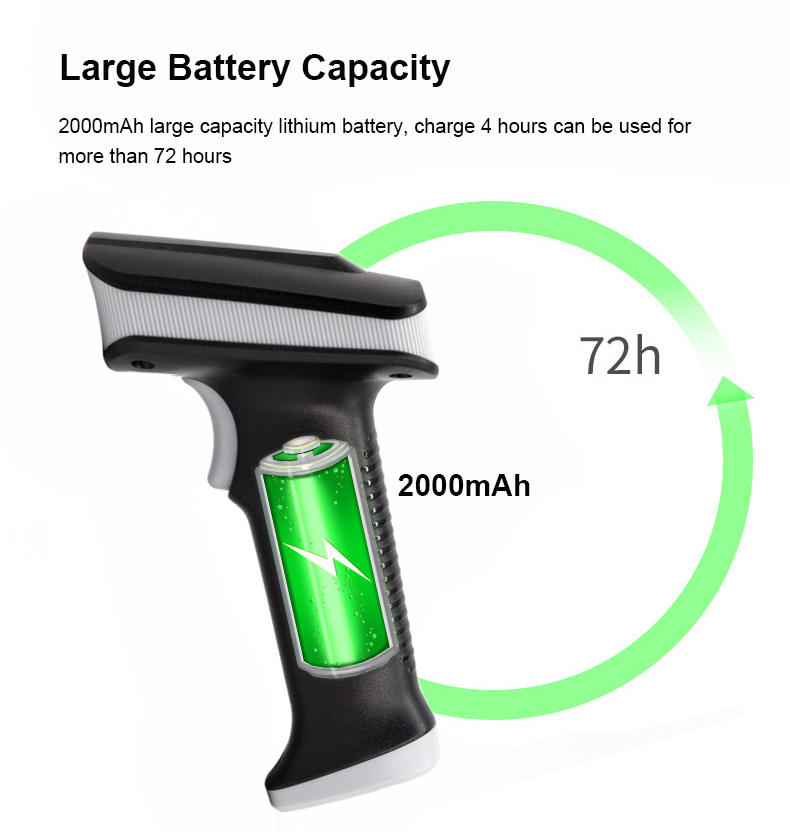

Battery Capacity | 2000Mah |
Charging Time | 4 hours |
Battery Life | 10 days (standby), 24 hours (working: scan every 5 seconds) |
Interface | USB-HID, USB-COM |
USB Cable Length | 1m |
Product Size | 157mm*70mm*112mm (barcode scanner) |
Net Weight | 198g (not including cable) |
