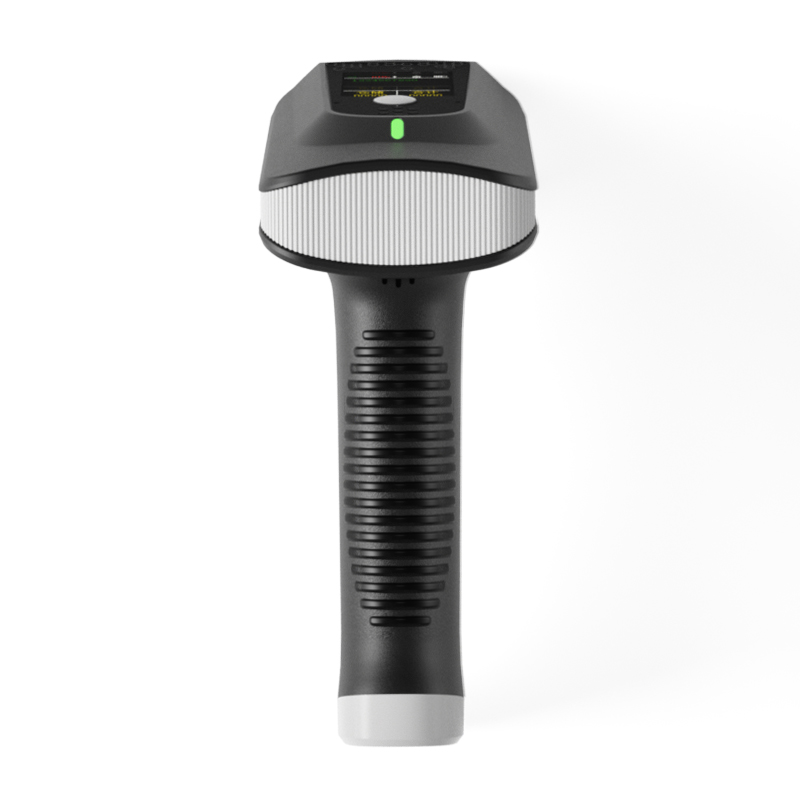

W10T-W Wireless Bluetooth QR Code Reader USB Handheld 2D Barcode Scanner with Display Screen

W10T-W Wireless Bluetooth QR Code Reader USB Handheld 2D Barcode Scanner with Display Screen

Feature

* 1.44-inch TFT LCD screen (128×RGB×128)

* High speed decoding, sensitive response

* Built-in storage function, supporting the inventory mode

* It can directly read barcodes in printing or on phone and computer screens

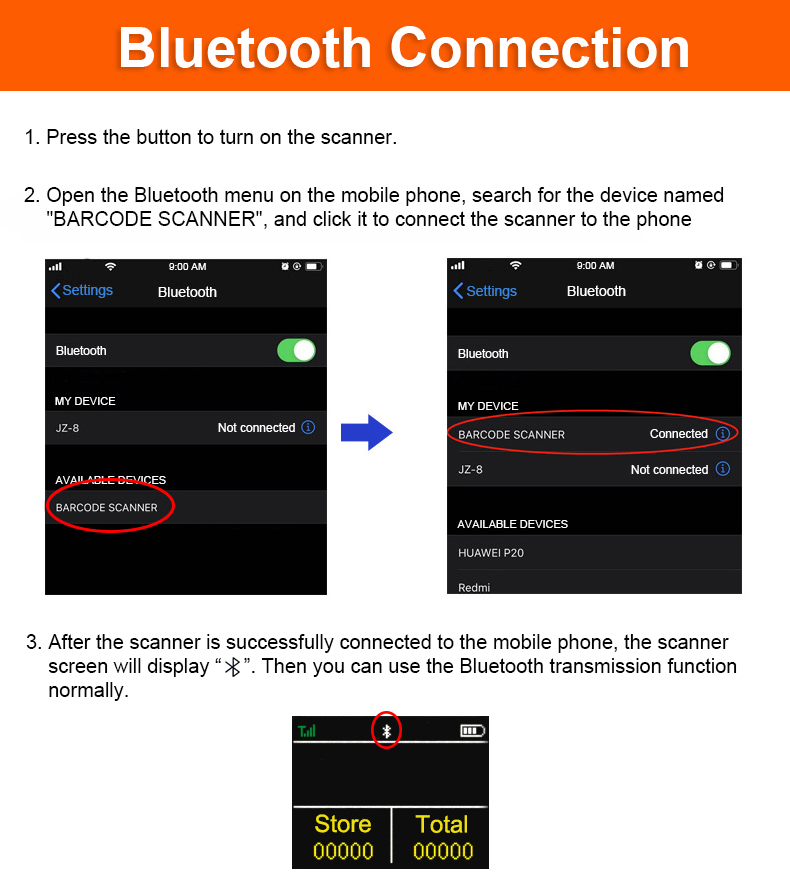

* 3 in 1 transmission mode: wireless+Bluetooth+USB cable

0.00
0.00

Product Description

Feature

* 1.44-inch TFT LCD screen (128×RGB×128)

* High speed decoding, sensitive response

* Built-in storage function, supporting the inventory mode

* It can directly read barcodes in printing or on phone and computer screens

* 3 in 1 transmission mode: wireless+Bluetooth+USB cable

Specification
Model Number
W10T-W
Scan Sensor
CMOS 640*480
Display

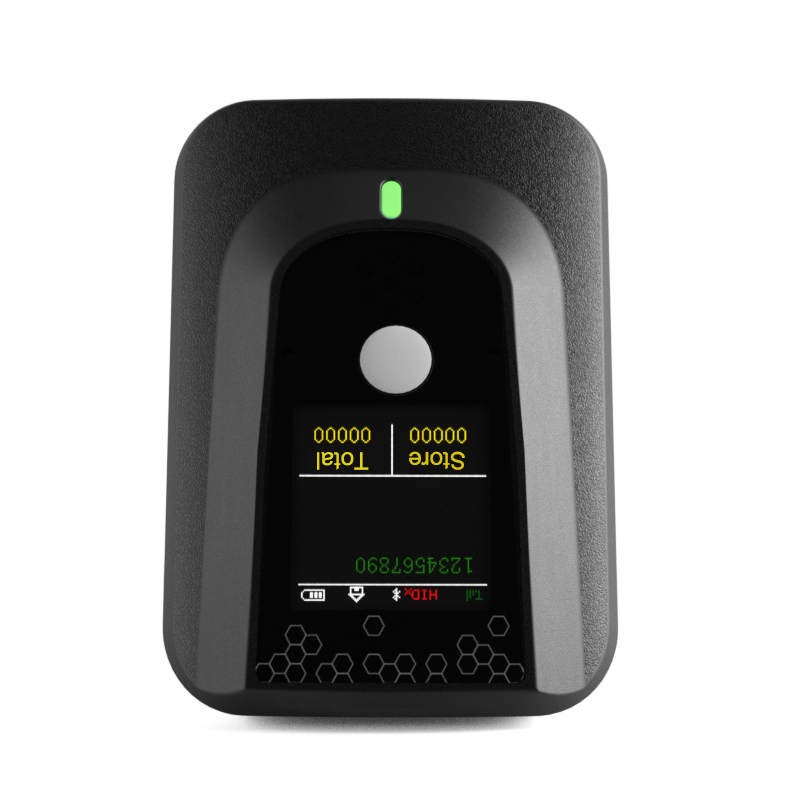

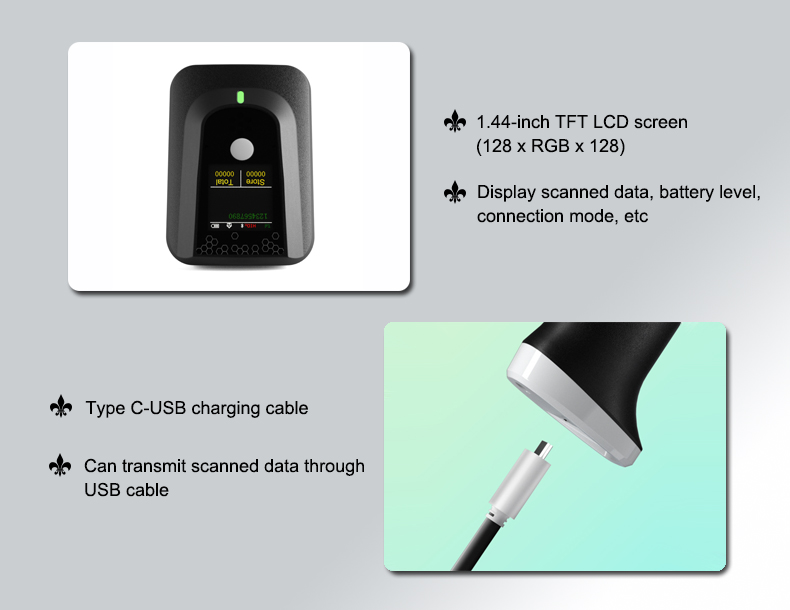

1.44-inch TFT LCD screen (128 x RGB x 128)
Transmission Mode
Wireless (0-100m) + Bluetooth (0-20m) + USB cable
Scan Mode
Trigger scanning/Continuous scanning/Automatic induction scanning
Scan Speed
300 scans/sec ±2%
Scan Precision
≥4mil
Print Contrast
≥15%
Scan Medium
1D+2D+QR code (support computer screen, mobile payment, etc)
Decode Capability
1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code 93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc
2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc
Scan Depth
QR (20mil): 15~160mm
Data Matrix (10mil): 5~110mm
PDF 417 (7mil): 30~125mm
EAN-13 (13mil): 30~200mm
Code 39 (8mil): 20~145mm
Code 128 (7mil): 15~135mm
Read Angle
Roll: ±360°, skew: ±60°, pitch: ±60°
Input Voltage
DC 5V±10%
Current
Working: 350mA, Standby: 130mA
Battery Capacity
2000Mah
Charging Time
4 hours
Battery Life
10 days (standby), 24 hours (working: scan every 5 seconds)

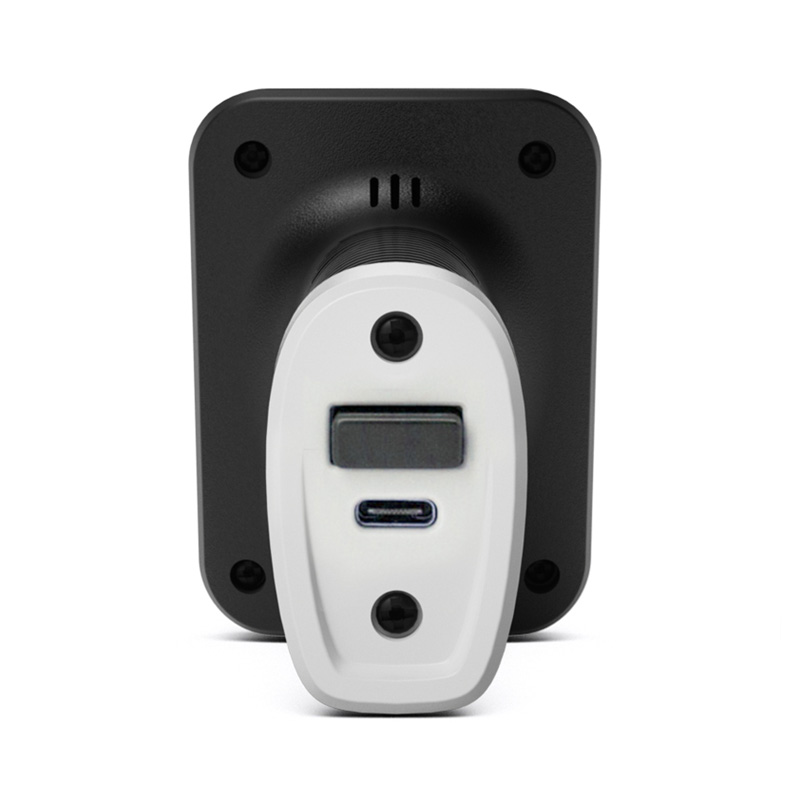

Interface
USB
USB Cable Length
1m
Product Size
157mm*70mm*112mm (barcode scanner)
Net Weight
173g (not including cable)
