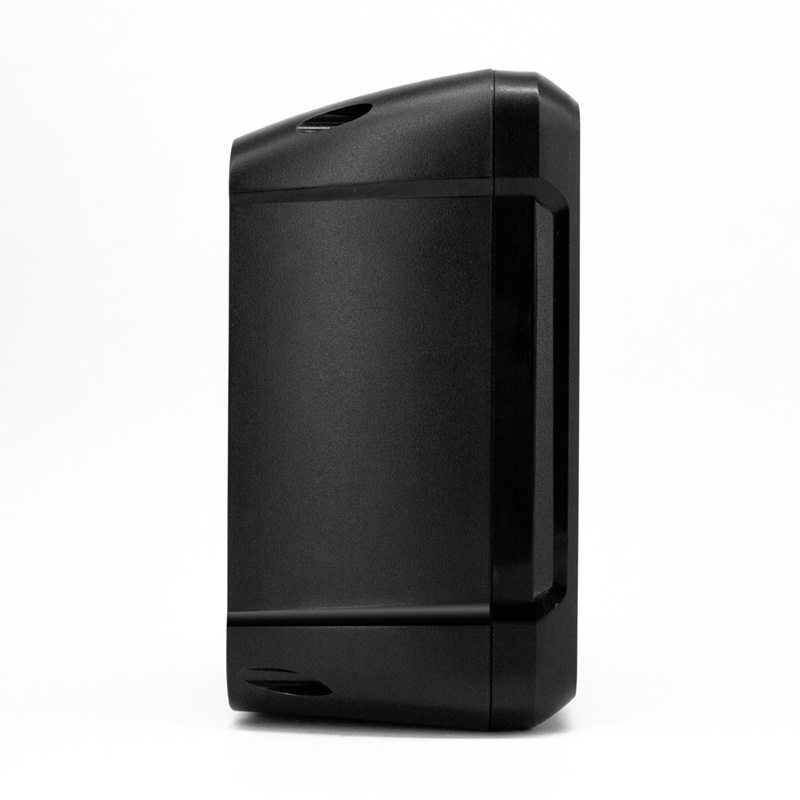

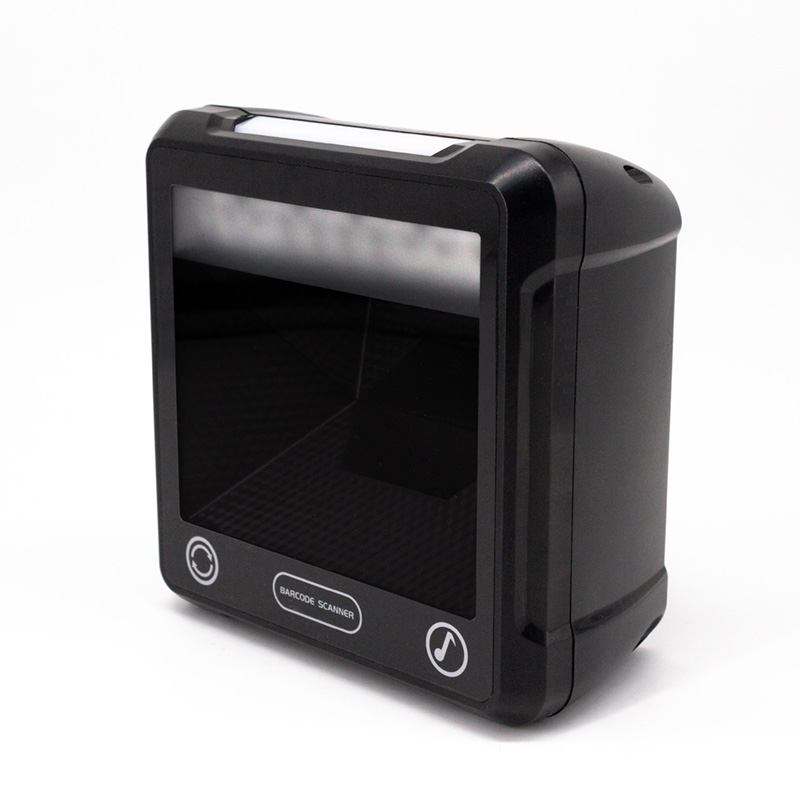

X21 High Performance QR Code Reader 1 Mega Pixel Large Scanning Window 2D Desktop Barcode Scanner
Feature
* Equipped with new 1,000,000 pixels global exposure scanning sensor, scans very fast.
* Large scanning window easy for scanning.
* Support to read printing barcodes or barcodes on mobile phone or computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code.
* Rich interface, strong compatibility, support a variety of systems and cash registers, suitable for all kinds of new retail industry, supermarkets, ticket checking place, warehouse, logistic, etc.
Feature
* Equipped with new 1,000,000 pixels global exposure scanning sensor, scans very fast.
* Large scanning window easy for scanning.
* Support to read printing barcodes or barcodes on mobile phone or computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code.
* Rich interface, strong compatibility, support a variety of systems and cash registers, suitable for all kinds of new retail industry, supermarkets, ticket checking place, warehouse, logistic, etc.
Model Number | X21 |
Scan Mode | CMOS 1280*800 (1MP sensor) |
Scan Mode | Automatic induction scanning |
Transmission Mode | Wired via USB cable |
Scan Speed | 120 fpt/sec |
Scan Precision | 1D≥3mil, 2D≥5mil |
Print Contrast | ≥15% |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite, etc 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code, etc |
Field of View | 48° (H) x 30° (V) |
Scan Angle | Pitch: ±60°, Skew: ±54°, Roll: ±360° |
Cable Interface | Type C-USB |
Voltage | DC 5V±10% |
Current | Working: 240mA, Standby: 190mA |
