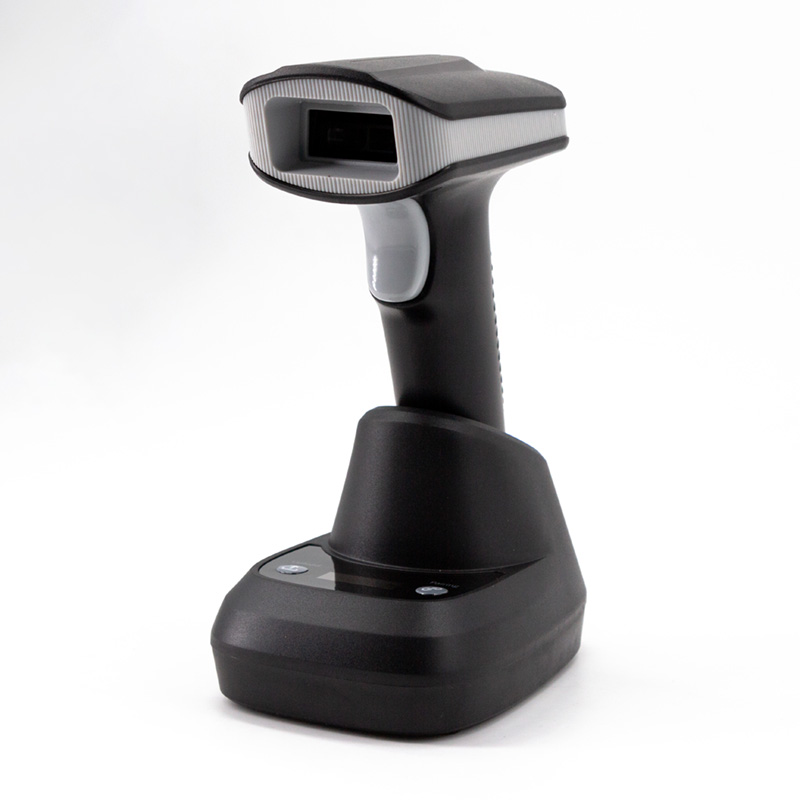

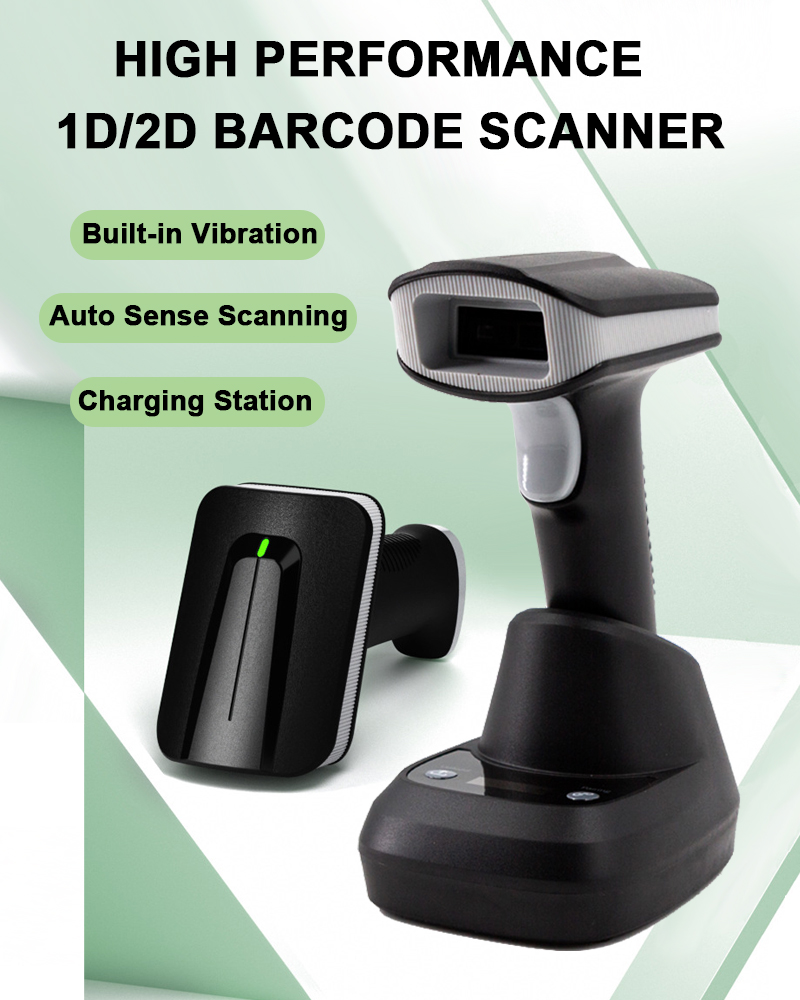

W10-L High Performance Bluetooth Wireless QR Code Scanner Auto Sense Scanning 2D Barcode Reader with Charging Station
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* High speed decoding, sensitive response

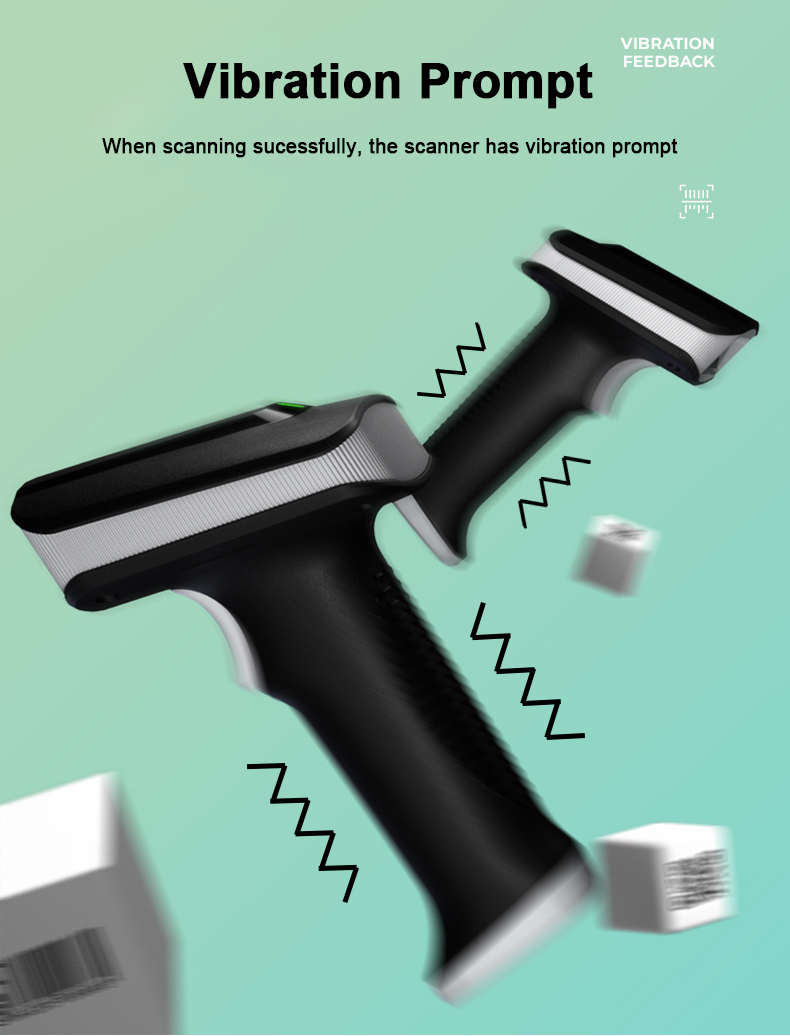

* equipped with vibration prompt
* Built-in storage function, supporting the inventory mode
* Remote online upgrade is supported

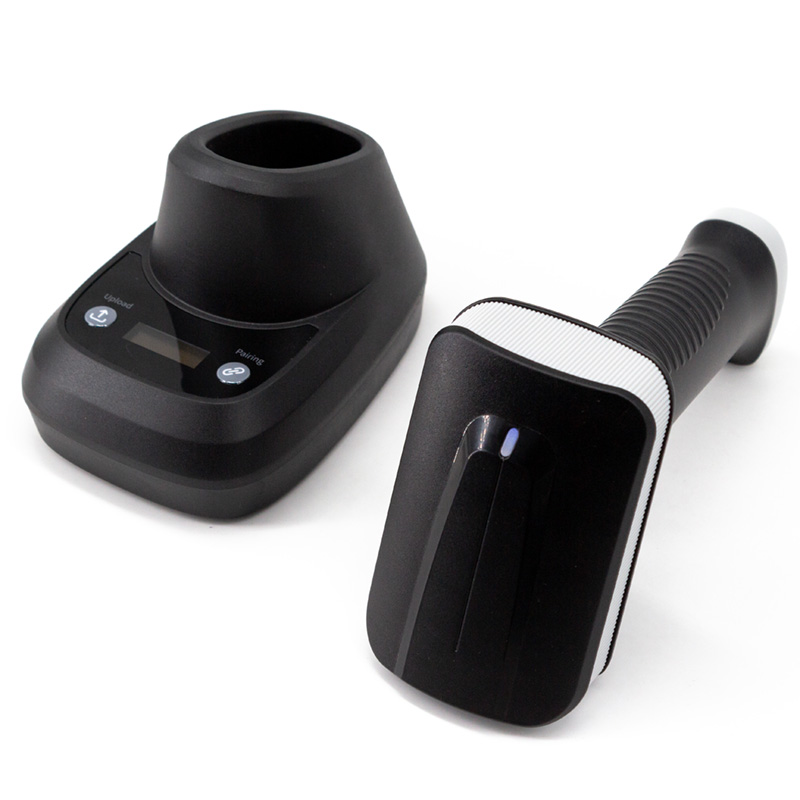

* Press buttons for pairing and upload scanned data, convenient to use

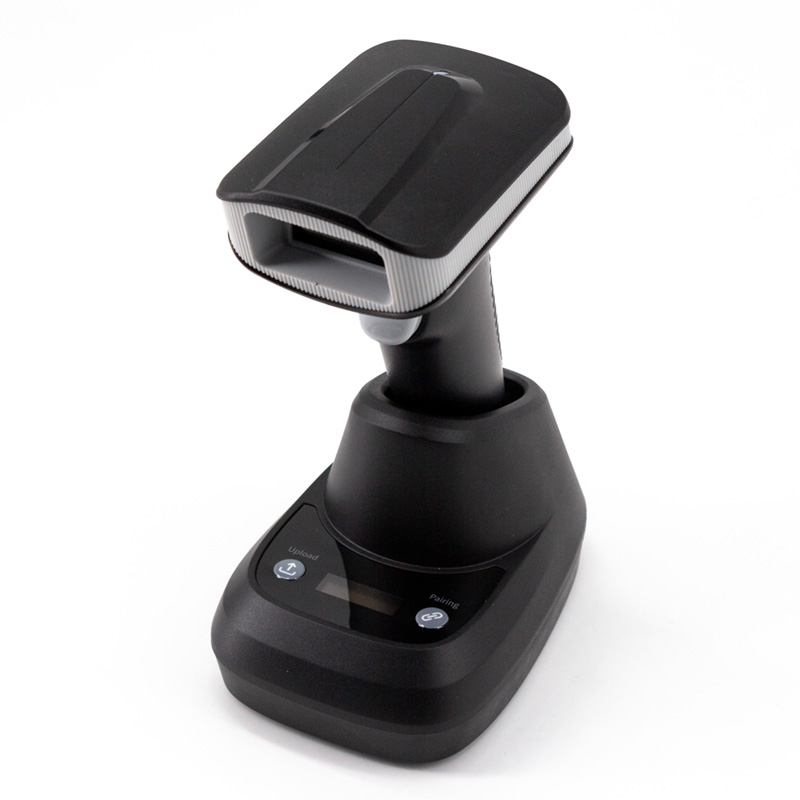

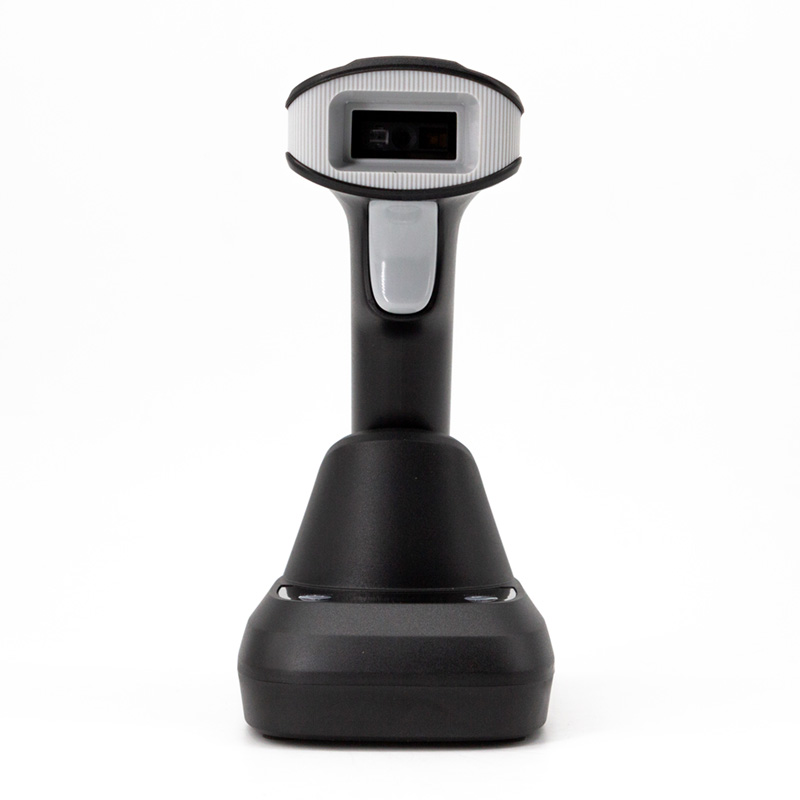

* * LCD display screen on the charging base.
* Two transmission modes: Bluetooth+wireless.
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* High speed decoding, sensitive response
* equipped with vibration prompt
* Built-in storage function, supporting the inventory mode
* Remote online upgrade is supported
* Press buttons for pairing and upload scanned data, convenient to use
* * LCD display screen on the charging base.
* Two transmission modes: Bluetooth+wireless.
Model Number | W10-L |
Scan Sensor | CMOS 640*480 |
Transmission Mode | Wireless (0-100m) + Bluetooth (0-20m) |
Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |

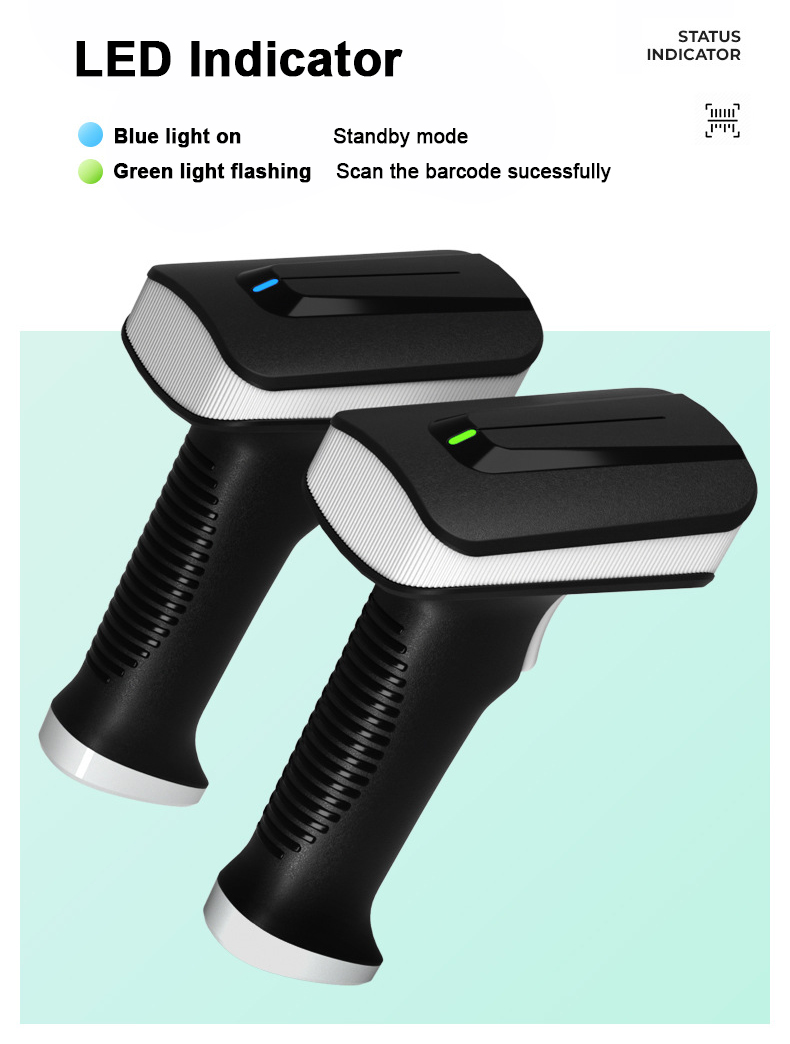

Prompt Way | Beeper, LED indicator, vibration prompt |
Scan Speed | 300 scans/sec ±2% |
Scan Precision | ≥4mil |
Print Contrast | ≥15% |
Scan Medium | 1D+2D+QR code (support computer screen, mobile payment, etc) |
Decode Capability | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code 93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc |
Scan Depth | QR (20mil): 15~160mm Data Matrix (10mil): 5~110mm PDF 417 (7mil): 30~125mm EAN-13 (13mil): 30~200mm Code 39 (8mil): 20~145mm Code128 (7mil): 15~135mm |
Read Angle | Roll: ±360°, skew: ±60°, pitch: ±60° |
Field of View | 48° (H) * 30° (V) |
Battery | 2000Mah |
Charging Time | 4 hours |
Battery Life | 10 days (standby), 24 hours (working: scan every 5 seconds) |
Input Voltage | DC 5V±10% |
Current | Operation: 350mA, Standby: 130mA |
Interface | Type C-USB |
