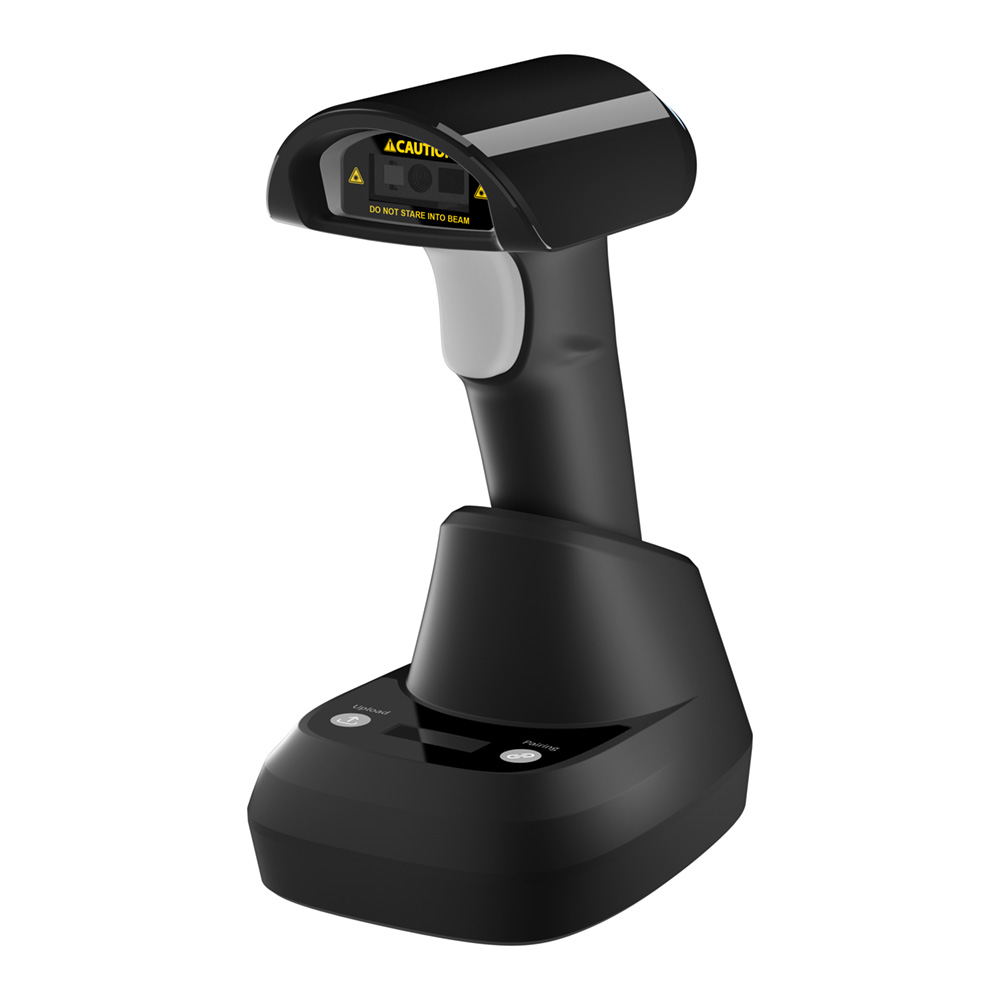

W2-L High Speed Bluetooth QR Code Reader CMOS 2D Wireless Barcode Scanner with Charging Station
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* High speed decoding, sensitive response
* equipped with vibration prompt
* Built-in storage function, supporting the inventory mode
* Remote online upgrade is supported

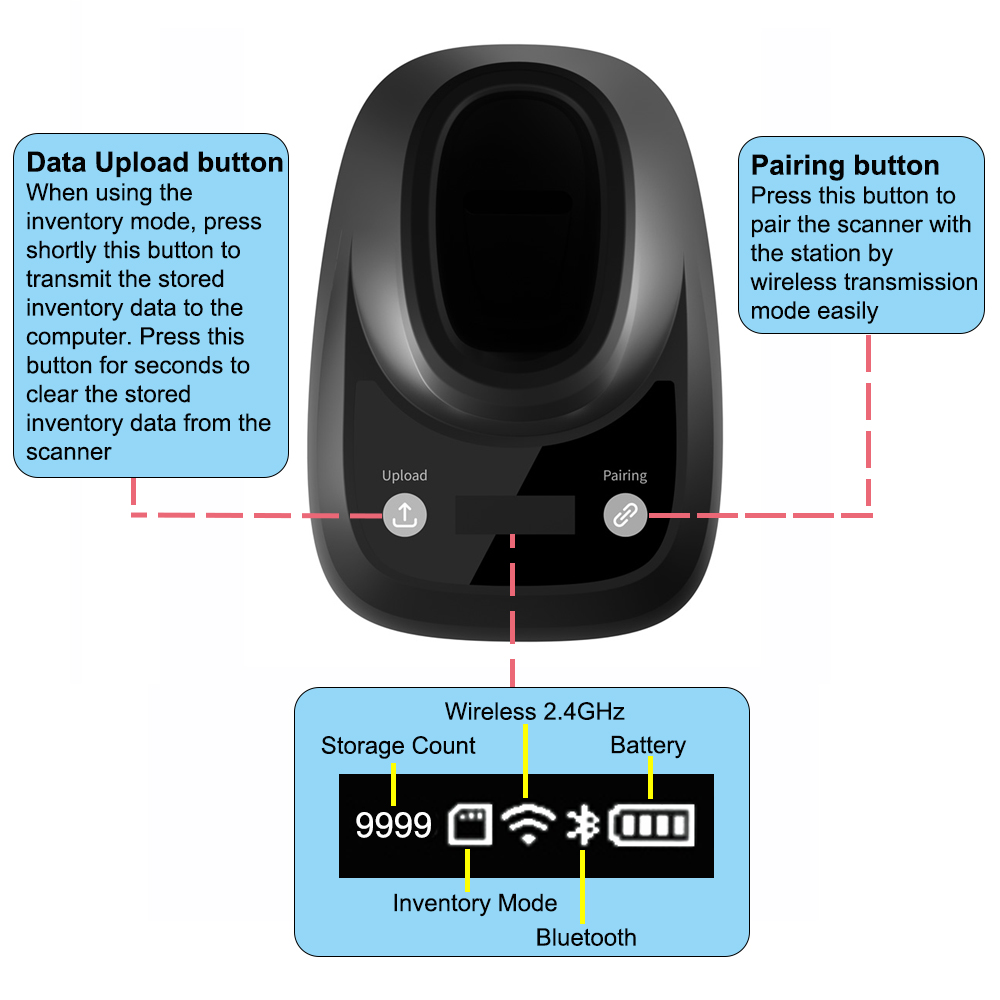

* Press buttons for pairing and upload scanned data, convenient to use

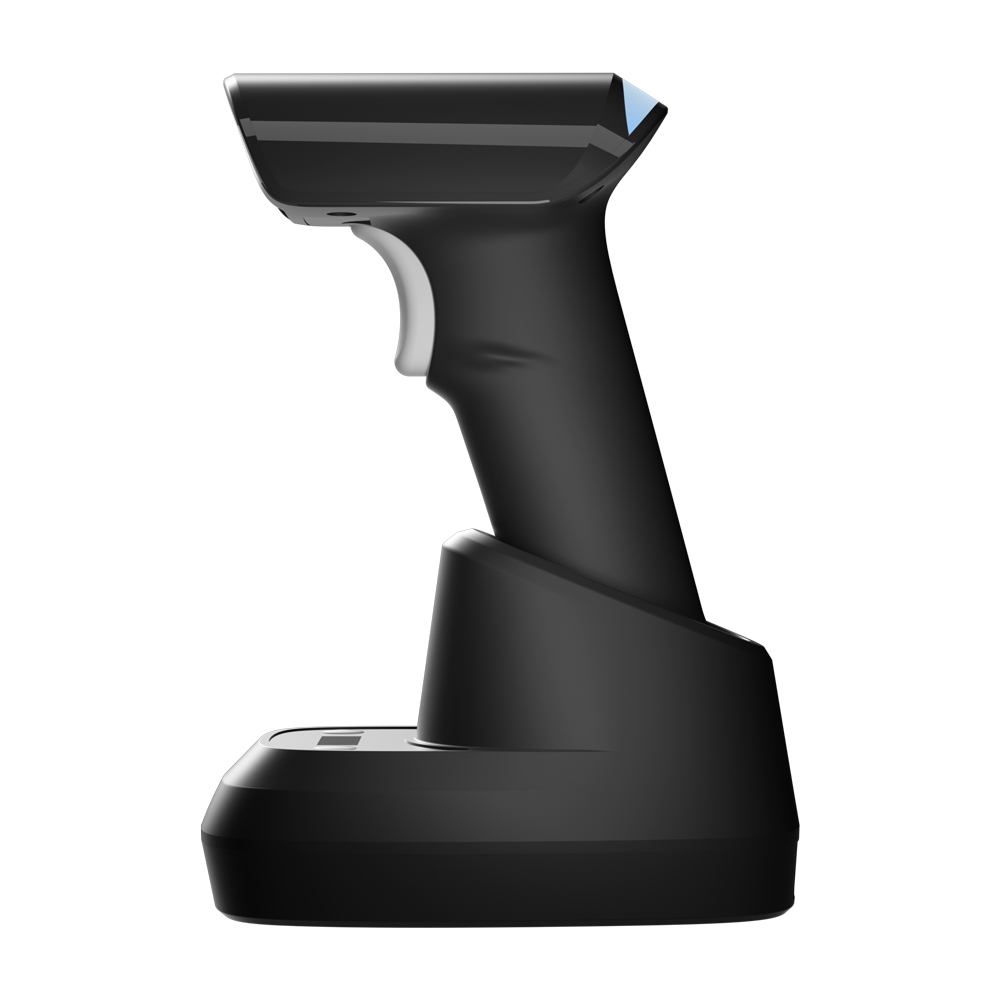

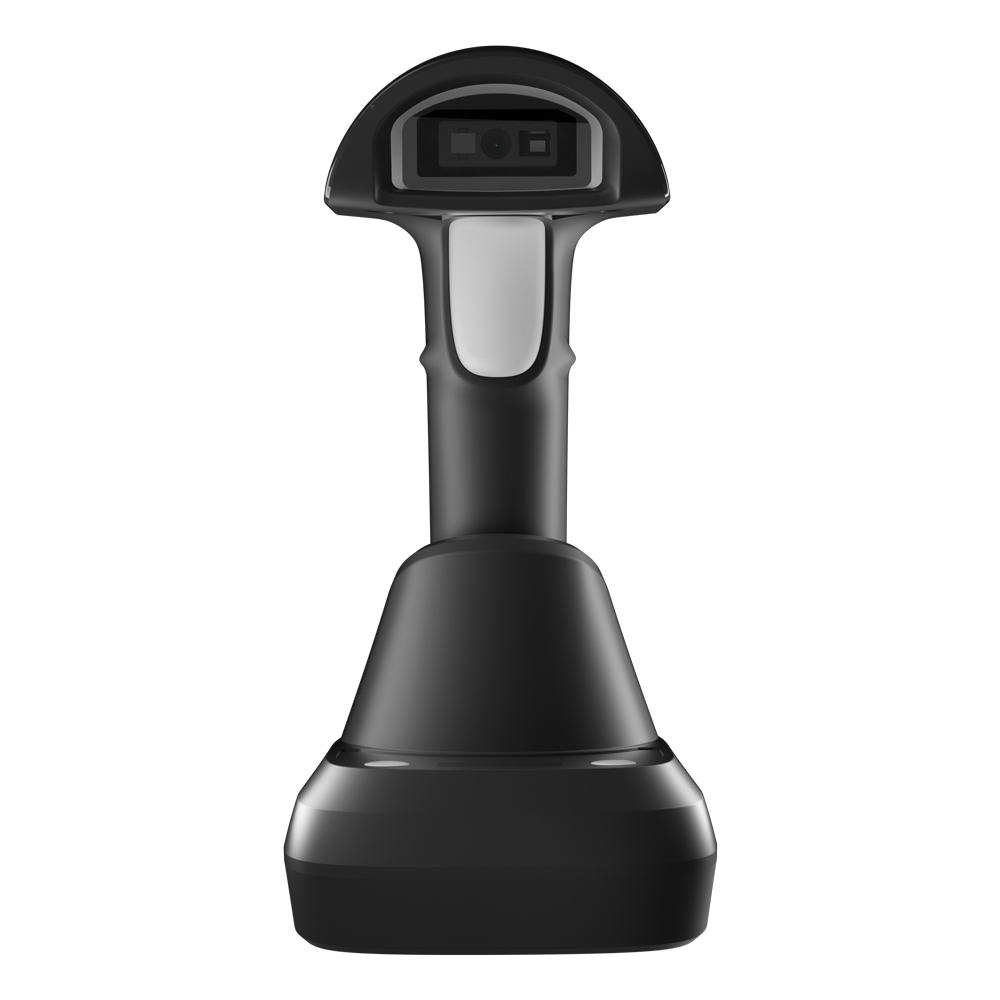

* * LCD display screen on the charging base.
* Two transmission modes: Bluetooth+wireless.
Feature
* It can directly read bar codes on phone and computer screens.
* Suitable for all kinds of new retail industry, ticket checking place, paper bar code and mobile bar code between the smooth switch.
* High speed decoding, sensitive response
* equipped with vibration prompt
* Built-in storage function, supporting the inventory mode
* Remote online upgrade is supported
* Press buttons for pairing and upload scanned data, convenient to use
* * LCD display screen on the charging base.
* Two transmission modes: Bluetooth+wireless.
Model Number | W2-L |
Scan Sensor | CMOS 640*480 |
Transmission Mode | Wireless (0-100m) + Bluetooth (0-20m) |
Scan Mode | Trigger scanning/Continuous scanning/Automatic induction scanning |
Scan Speed | 300 scans/sec ±2% |
Scan Precision | ≥4mil |
Print Contrast | ≥15% |
Decode Capability | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc |
Scan Depth | Data Matrix (10mil): 30- 140mm PDF 417(6.7mil): 50- 120mm EAN-13 (13mil) 50~280mm Code 128 (15mil): 80~320mm QR payment code (mobile code): 80~550mm |
Scan Angle | Roll: ±360°, skew: ±60°, pitch: ±60° |
Field of View | 48° (H) x 30° (V) |
Input Voltage | DC 5V±10% |
Battery | 2000Mah |
Current | Working: 350 mAh, Standby: 130 mAh |
Charging Time | 4 hours |
Battery Life | 10 days (standby), 24 hours (working: scan every 5 seconds) |
Interface | USB |
